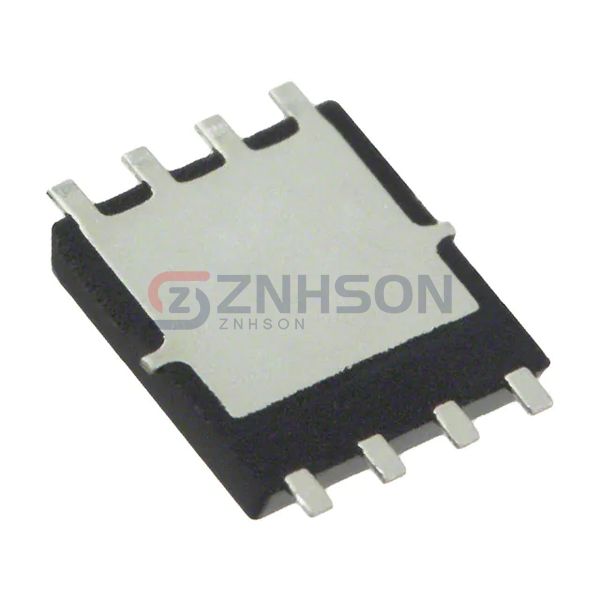

TPH7R506NH,L1Q
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 60V 22A 8SOP
$1.54
Available to order
Reference Price (USD)
5,000+
$0.59500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Toshiba Semiconductor and Storage TPH7R506NH,L1Q is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TPH7R506NH,L1Q
$1.54
Product details
General specs
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 4V @ 300µA
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2320 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 1.6W (Ta), 45W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP Advance (5x5)
- Package / Case: 8-PowerVDFN
