S3N

onsemi

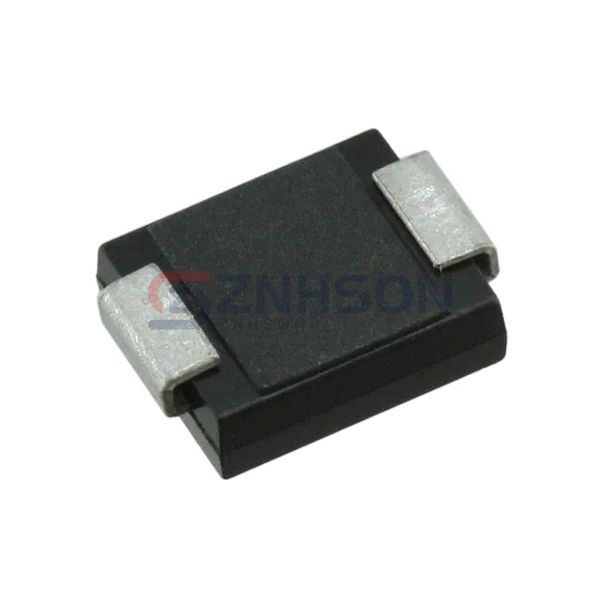

S3N Preview
onsemi
DIODE GEN PURP 1200V 3A SMC
$0.69
Available to order
Reference Price (USD)
3,000+
$0.14245
6,000+
$0.13326
15,000+
$0.12866
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

onsemi S3N is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
S3N

S3N

$0.69

Product details

Experience superior rectification performance with the S3N single diode from onsemi, engineered for excellence in power electronics. This component offers an optimal balance between forward voltage characteristics and reverse leakage current, ensuring efficient energy conversion. The diode's advanced construction provides excellent thermal stability and long-term reliability in continuous operation. Designers will appreciate its versatility in applications ranging from consumer appliances to industrial power systems. The S3N performs exceptionally well in UPS systems, electric vehicle power trains, and renewable energy converters. Its robust design withstands electrical transients and mechanical stress, making it ideal for transportation and infrastructure applications. Additional benefits include consistent batch-to-batch performance and compatibility with automated assembly processes. For engineers seeking a reliable rectification solution, the S3N delivers outstanding results. Contact us today to learn more about this high-performance diode and its applications.

General specs

  • Product Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 1200 V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 3 A
  • Speed: Standard Recovery >500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 2.5 µs
  • Current - Reverse Leakage @ Vr: 5 µA @ 1200 V
  • Capacitance @ Vr, F: 60pF @ 4V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AB, SMC
  • Supplier Device Package: SMC (DO-214AB)
  • Operating Temperature - Junction: -55°C ~ 150°C
