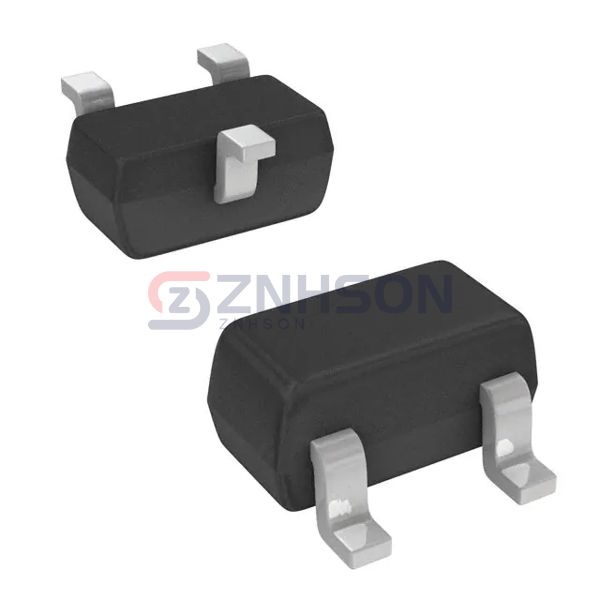

DDTC143XE-7-F
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 150MW SOT523
$0.37
Available to order
Reference Price (USD)
3,000+
$0.06538
6,000+
$0.05750
15,000+
$0.04963
30,000+
$0.04700
75,000+
$0.04438
150,000+
$0.04000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Diodes Incorporated DDTC143XE-7-F is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
DDTC143XE-7-F
$0.37
Product details
The DDTC143XE-7-F pre-biased bipolar transistor by Diodes Incorporated combines switching speed and analog performance in a single cost-optimized package. Its innovative design minimizes storage time for clean pulse edges in digital applications while maintaining linearity for small-signal processing. Common implementations involve USB power delivery controllers, building security system interfaces, and drone motor drivers. The component's MSOP-8 package provides separate emitter and collector pins for layout flexibility. With 100% automated testing ensuring parameter compliance, this solution reduces incoming inspection overhead. Start your evaluation purchase DDTC143XE-7-F evaluation kits directly from our authorized distributors with overnight shipping options.
General specs
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250 MHz
- Power - Max: 150 mW
- Mounting Type: Surface Mount
- Package / Case: SOT-523
- Supplier Device Package: SOT-523
