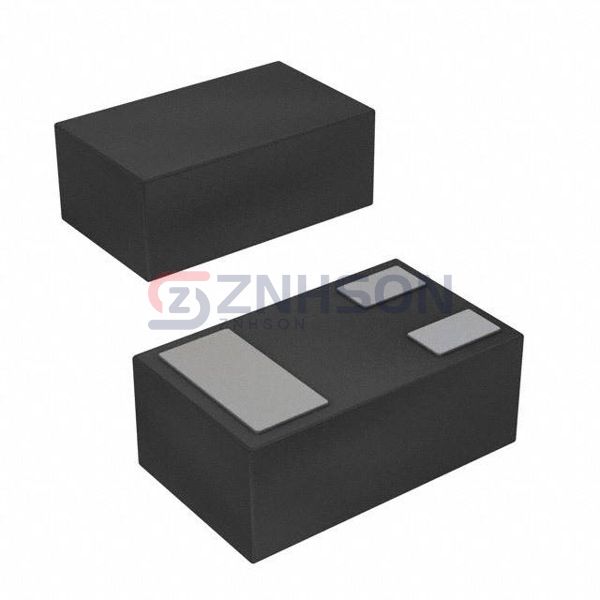

UNRF2AN00A
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN 100MW ML3-N2
$0.16
Available to order
Reference Price (USD)
1+
$0.16000
500+
$0.1584
1000+
$0.1568
1500+
$0.1552
2000+
$0.1536
2500+
$0.152
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Panasonic Electronic Components UNRF2AN00A is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
UNRF2AN00A
$0.16
Product details
The UNRF2AN00A pre-biased bipolar transistor by Panasonic Electronic Components combines switching speed and analog performance in a single cost-optimized package. Its innovative design minimizes storage time for clean pulse edges in digital applications while maintaining linearity for small-signal processing. Common implementations involve USB power delivery controllers, building security system interfaces, and drone motor drivers. The component's MSOP-8 package provides separate emitter and collector pins for layout flexibility. With 100% automated testing ensuring parameter compliance, this solution reduces incoming inspection overhead. Start your evaluation purchase UNRF2AN00A evaluation kits directly from our authorized distributors with overnight shipping options.
General specs
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 80 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150 MHz
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-101, SOT-883
- Supplier Device Package: ML3-N2
