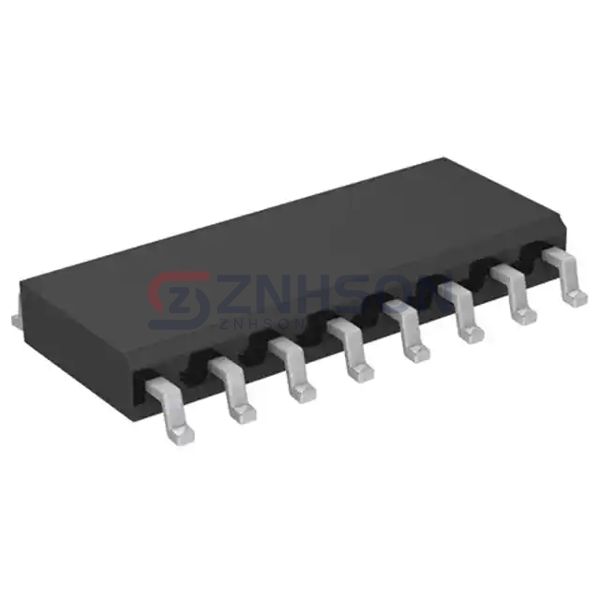

TCMT4600
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 3.75KV 4CH TRANS 16-SOP
$2.35
Available to order
Reference Price (USD)
2,000+
$0.86060
6,000+
$0.82750
10,000+
$0.81095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Vishay Semiconductor Opto Division TCMT4600 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TCMT4600
$2.35
Product details
Vishay Semiconductor Opto Division's TCMT4600 represents the next generation of optoisolator technology, combining transistor and photovoltaic outputs for versatile circuit isolation solutions. This advanced component provides galvanic isolation that prevents ground loops and protects sensitive electronics from potentially damaging voltage differences. The optoisolator features optimized response times and excellent linearity for accurate signal transmission across its isolation barrier. Its energy-efficient design minimizes power consumption without compromising performance, making it suitable for battery-powered applications. The TCMT4600 excels in harsh industrial environments thanks to its wide operating temperature range and vibration-resistant construction. Typical implementations include industrial motor drives, solar power inverters, and automotive control modules. Medical device manufacturers rely on its reliable isolation for patient-connected equipment, while automation engineers value its consistent performance in PLC systems. For detailed specifications or to discuss your application requirements, our technical team is ready to assist with your TCMT4600 selection.
General specs
- Product Status: Active
- Number of Channels: 4
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 80% @ 5mA
- Current Transfer Ratio (Max): 300% @ 5mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: AC, DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.35V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.173", 4.40mm Width)
- Supplier Device Package: 16-SOP
