TCLT1005

Vishay Semiconductor Opto Division
TCLT1005 Preview
Vishay Semiconductor Opto Division

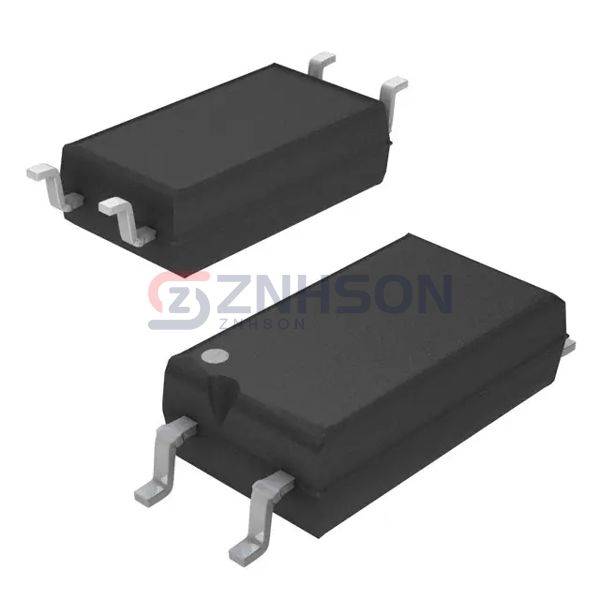

OPTOISOLATR 5KV TRANSISTOR 4-SOP
$0.72
Available to order
Reference Price (USD)
3,000+
$0.21980
6,000+
$0.21195
15,000+
$0.20881
30,000+
$0.20410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Vishay Semiconductor Opto Division TCLT1005 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TCLT1005

TCLT1005

$0.72

Product details

The TCLT1005 optoisolator from Vishay Semiconductor Opto Division offers superior electrical isolation for critical electronic systems. Featuring transistor and photovoltaic outputs, this component creates a reliable barrier between high-voltage and low-voltage circuits while maintaining signal fidelity. Its innovative design ensures minimal signal distortion across the isolation barrier, making it ideal for precision measurement equipment and control systems. The device's robust construction provides excellent resistance to environmental stressors like temperature fluctuations and EMI. Designers will appreciate its compatibility with various logic families and straightforward implementation in circuit designs. Common use cases include PLC interfaces, power supply feedback loops, and battery management systems. The TCLT1005 delivers exceptional performance in medical isolation barriers, factory automation, and telecommunications infrastructure. With its proven reliability and industry-compliant design, this optoisolator stands as a smart solution for your isolation needs. Visit our website to inquire about volume pricing options for Vishay Semiconductor Opto Division's TCLT1005.

General specs

  • Product Status: Active
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Current Transfer Ratio (Min): 50% @ 5mA
  • Current Transfer Ratio (Max): 150% @ 5mA
  • Turn On / Turn Off Time (Typ): 6µs, 5µs
  • Rise / Fall Time (Typ): 3µs, 4.7µs
  • Input Type: DC
  • Output Type: Transistor
  • Voltage - Output (Max): 70V
  • Current - Output / Channel: 50mA
  • Voltage - Forward (Vf) (Typ): 1.25V
  • Current - DC Forward (If) (Max): 60 mA
  • Vce Saturation (Max): 300mV
  • Operating Temperature: -55°C ~ 100°C
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, Gull Wing
  • Supplier Device Package: 4-SOP
