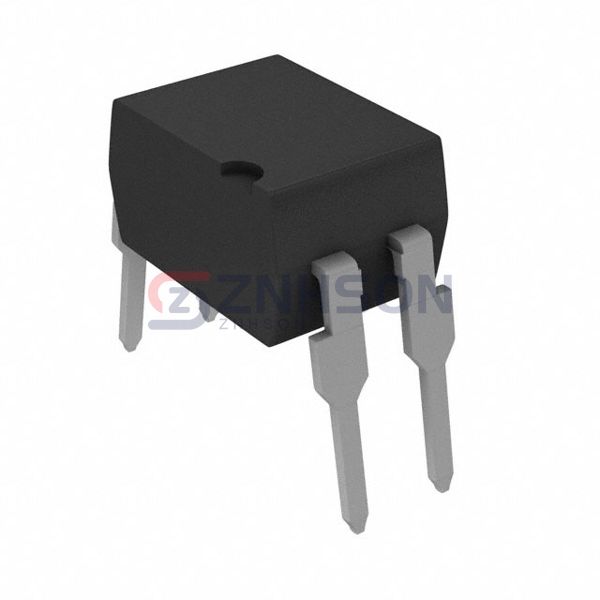

SFH615A-1
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 5.3KV TRANS 4-DIP
$0.80
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.60900
25+
$0.50480
100+
$0.43500
250+
$0.38280
500+
$0.33060
1,000+
$0.26100
4,000+
$0.24360
8,000+
$0.23490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Vishay Semiconductor Opto Division SFH615A-1 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
SFH615A-1
$0.80
Product details
Maximize system reliability with Vishay Semiconductor Opto Division's SFH615A-1, a premium optoisolator designed for critical isolation applications. This versatile component combines transistor and photovoltaic outputs to address diverse circuit isolation requirements with superior performance. Its optical coupling technology provides complete galvanic separation while maintaining signal integrity across the isolation barrier. The SFH615A-1 features optimized switching characteristics for both analog and digital signals, making it adaptable to various system architectures. Engineers appreciate its consistent performance over extended temperature ranges and immunity to electromagnetic interference. Common applications include industrial automation interfaces, power management systems, and safety-critical control circuits. The telecommunications industry utilizes these optoisolators in base station equipment, while energy sector applications span from smart meters to grid monitoring systems. Medical device designers specify the SFH615A-1 for its reliable patient isolation in diagnostic equipment. With Vishay Semiconductor Opto Division's reputation for quality and innovation, this optoisolator delivers the performance your application demands. Complete our online inquiry form for prompt pricing and delivery information on the SFH615A-1.
General specs
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Current Transfer Ratio (Min): 40% @ 10mA
- Current Transfer Ratio (Max): 80% @ 10mA
- Turn On / Turn Off Time (Typ): 3µs, 18µs
- Rise / Fall Time (Typ): 2µs, 11µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.35V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: 4-DIP
