CNY17-3X016

Vishay Semiconductor Opto Division

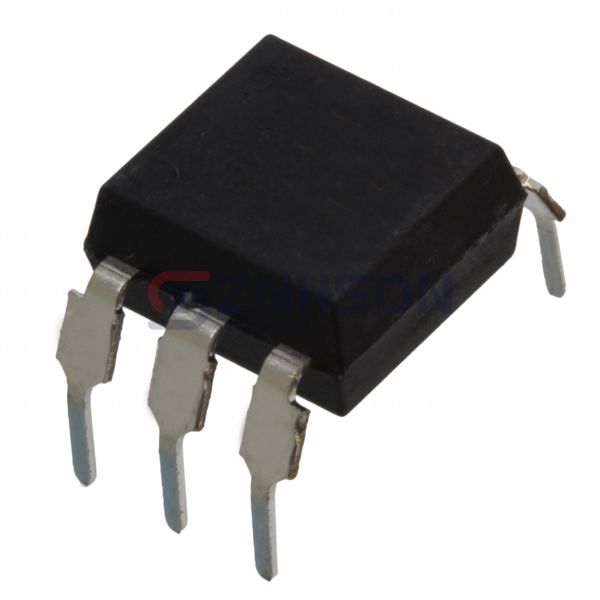

CNY17-3X016 Preview
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE 6DIP
$0.80
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.60900
25+
$0.50480
100+
$0.43500
250+
$0.38280
500+
$0.33060
2,000+
$0.24360
6,000+
$0.23490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Vishay Semiconductor Opto Division CNY17-3X016 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
CNY17-3X016

CNY17-3X016

$0.80

Product details

Maximize system reliability with Vishay Semiconductor Opto Division's CNY17-3X016, a premium optoisolator designed for critical isolation applications. This versatile component combines transistor and photovoltaic outputs to address diverse circuit isolation requirements with superior performance. Its optical coupling technology provides complete galvanic separation while maintaining signal integrity across the isolation barrier. The CNY17-3X016 features optimized switching characteristics for both analog and digital signals, making it adaptable to various system architectures. Engineers appreciate its consistent performance over extended temperature ranges and immunity to electromagnetic interference. Common applications include industrial automation interfaces, power management systems, and safety-critical control circuits. The telecommunications industry utilizes these optoisolators in base station equipment, while energy sector applications span from smart meters to grid monitoring systems. Medical device designers specify the CNY17-3X016 for its reliable patient isolation in diagnostic equipment. With Vishay Semiconductor Opto Division's reputation for quality and innovation, this optoisolator delivers the performance your application demands. Complete our online inquiry form for prompt pricing and delivery information on the CNY17-3X016.

General specs

  • Product Status: Active
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Current Transfer Ratio (Min): 100% @ 10mA
  • Current Transfer Ratio (Max): 200% @ 10mA
  • Turn On / Turn Off Time (Typ): 3µs, 2.3µs
  • Rise / Fall Time (Typ): 2µs, 2µs
  • Input Type: DC
  • Output Type: Transistor with Base
  • Voltage - Output (Max): 70V
  • Current - Output / Channel: 50mA
  • Voltage - Forward (Vf) (Typ): 1.39V
  • Current - DC Forward (If) (Max): 60 mA
  • Vce Saturation (Max): 400mV
  • Operating Temperature: -55°C ~ 110°C
  • Mounting Type: Through Hole
  • Package / Case: 6-DIP (0.400", 10.16mm)
  • Supplier Device Package: 6-DIP
