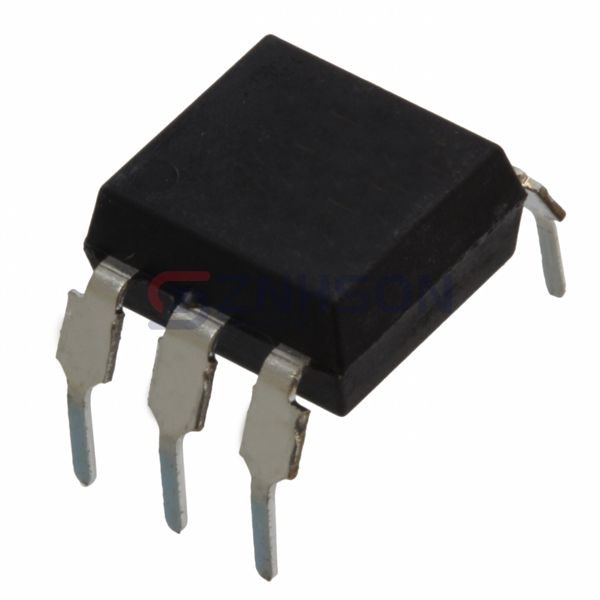

CNY117-1X006
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE 6DIP
$0.31
Available to order
Reference Price (USD)
2,000+
$0.29890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Vishay Semiconductor Opto Division CNY117-1X006 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
CNY117-1X006
$0.31
Product details
The CNY117-1X006 optoisolator by Vishay Semiconductor Opto Division provides secure signal isolation for mission-critical electronic systems. Featuring both transistor and photovoltaic outputs, this component offers designers flexible solutions for interfacing circuits with different voltage levels. Its high-speed optical coupling ensures accurate signal transmission while maintaining complete electrical isolation between input and output. The device demonstrates excellent stability under varying load conditions and maintains consistent performance throughout its operational lifespan. Industrial engineers value its rugged construction that withstands challenging environmental conditions common in manufacturing facilities. Primary applications include motor drive circuits, power supply feedback systems, and industrial communication networks. The CNY117-1X006 plays a vital role in renewable energy systems, particularly in solar inverter and wind turbine control applications. Medical equipment manufacturers rely on its reliable isolation for patient safety in therapeutic devices. Automotive systems incorporate these optoisolators for hybrid and electric vehicle power management. For detailed application notes or to discuss customization options for Vishay Semiconductor Opto Division's CNY117-1X006, our technical support team is ready to assist with your project requirements.
General specs
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 40% @ 10mA
- Current Transfer Ratio (Max): 80% @ 10mA
- Turn On / Turn Off Time (Typ): 3µs, 2.3µs
- Rise / Fall Time (Typ): 2µs, 2µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.39V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
