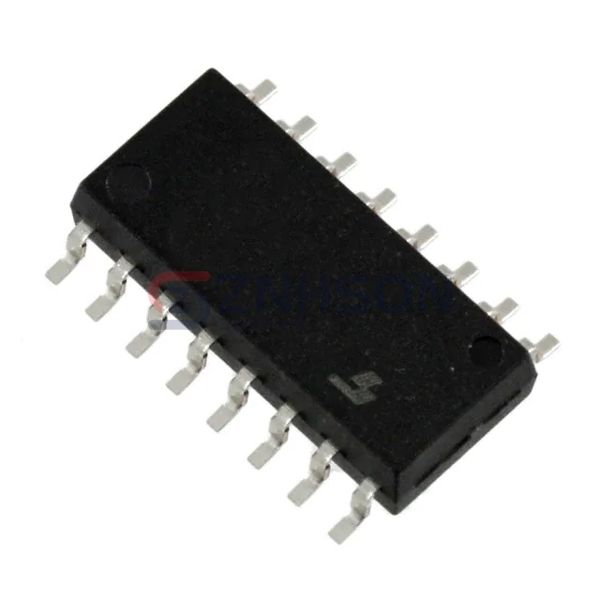

TLP291-4(GB-TP,E)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISOLTR 2.5KV 4CH TRANS 16-SO
$1.06
Available to order
Reference Price (USD)
1+
$1.06000
500+
$1.0494
1000+
$1.0388
1500+
$1.0282
2000+
$1.0176
2500+
$1.007
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Toshiba Semiconductor and Storage TLP291-4(GB-TP,E) is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TLP291-4(GB-TP,E)
$1.06
Product details
Engineered for precision and reliability, the TLP291-4(GB-TP,E) optoisolator from Toshiba Semiconductor and Storage delivers exceptional electrical isolation for critical systems. Its unique combination of transistor and photovoltaic outputs provides designers with flexible interface solutions while maintaining complete circuit separation. The device offers excellent noise immunity and stable performance across varying environmental conditions, ensuring consistent operation in challenging applications. With its high-speed response and minimal propagation delay, the TLP291-4(GB-TP,E) is particularly suited for real-time control systems and data acquisition networks. Industrial users benefit from its robust construction that withstands electrical noise common in factory settings. This optoisolator finds perfect application in power conversion systems, test and measurement equipment, and building automation controls. The medical industry utilizes its reliable isolation for diagnostic equipment, while renewable energy systems incorporate it for safe signal transmission. Toshiba Semiconductor and Storage's commitment to quality ensures the TLP291-4(GB-TP,E) meets all relevant safety certifications. Contact our sales department for competitive pricing on bulk orders of this versatile isolation component.
General specs
- Product Status: Active
- Number of Channels: 4
- Voltage - Isolation: 2500Vrms
- Current Transfer Ratio (Min): 100% @ 5mA
- Current Transfer Ratio (Max): 400% @ 5mA
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): 2µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.179", 4.55mm Width)
- Supplier Device Package: 16-SO
