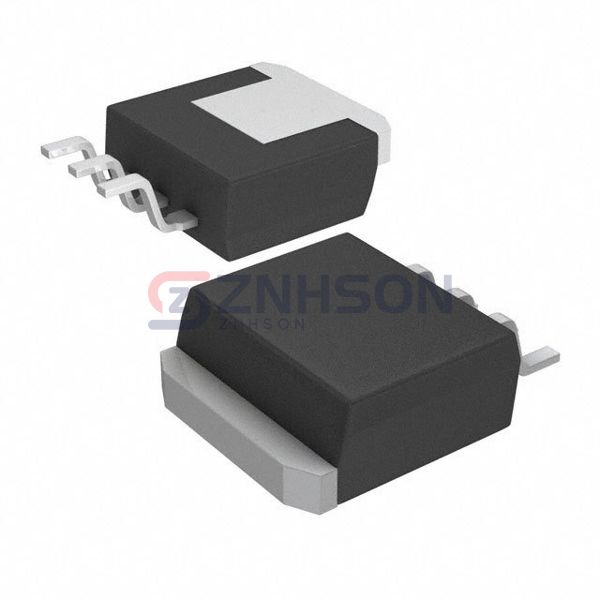

CSD19532KTT

Texas Instruments
CSD19532KTT Preview
Texas Instruments
MOSFET N-CH 100V 200A DDPAK
$1.75
Available to order
Reference Price (USD)
500+
$1.40176
1,000+
$1.16145
2,500+
$1.12140
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Texas Instruments CSD19532KTT is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
CSD19532KTT

CSD19532KTT

$1.75

Product details

The CSD19532KTT from Texas Instruments is a high-performance single MOSFET transistor designed for efficient power management in various electronic applications. This Discrete Semiconductor Product belongs to the Transistors - FETs, MOSFETs - Single category, offering reliable switching capabilities and low power dissipation. Ideal for both industrial and consumer electronics, this component ensures optimal performance in demanding environments. With its advanced design, the CSD19532KTT provides enhanced thermal stability and durability, making it a preferred choice for engineers and designers. Whether you're developing power supplies, motor controls, or audio amplifiers, this MOSFET delivers consistent results. Key features include fast switching speeds, low on-resistance, and excellent thermal characteristics. These attributes contribute to improved energy efficiency and reduced heat generation in your circuits. The CSD19532KTT finds applications in automotive systems, renewable energy solutions, and industrial automation equipment. For power inverters, battery management systems, or LED drivers, this component offers the reliability you need. Upgrade your designs with the CSD19532KTT and experience superior performance. Contact us today for pricing and availability submit your inquiry online to get started!

General specs

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100 V
  • Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
  • Rds On (Max) @ Id, Vgs: 5.6mOhm @ 90A, 10V
  • Vgs(th) (Max) @ Id: 3.2V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 57 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 5060 pF @ 50 V
  • FET Feature: -
  • Power Dissipation (Max): 250W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DDPAK/TO-263-3
  • Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA

Viewed products

IXYS

IXFA3N120

$0.00 (not set)
onsemi

FQD13N10LTM

$0.00 (not set)
Fairchild Semiconductor

FDD6670AL_NL

$0.00 (not set)
IXYS

IXTH140P05T

$0.00 (not set)
onsemi

2SK4087LS

$0.00 (not set)
Diodes Incorporated

ZXMN7A11GQTA

$0.00 (not set)
onsemi

NVD5117PLT4G-VF01

$0.00 (not set)
Fairchild Semiconductor

HUF75939P3

$0.00 (not set)
Fairchild Semiconductor

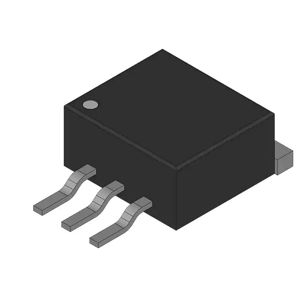

FQB7N30TM

$0.00 (not set)
Vishay Siliconix

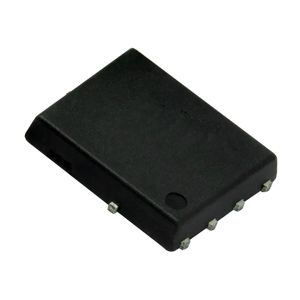

SIR5710DP-T1-RE3
