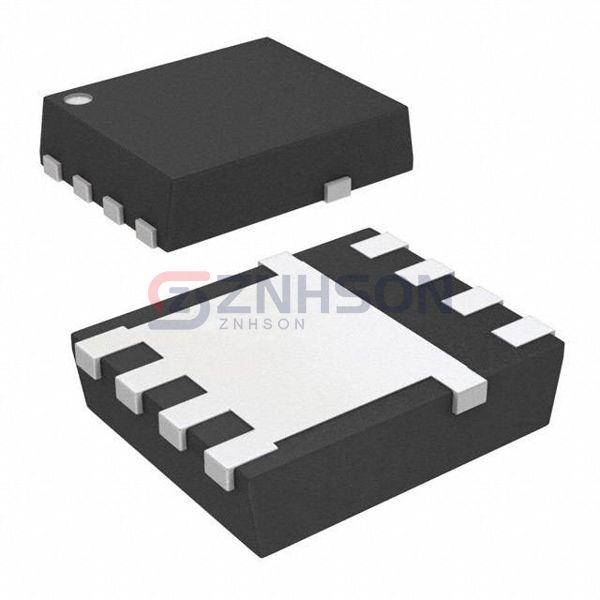

CSD18563Q5AT
Texas Instruments
Texas Instruments
MOSFET N-CH 60V 100A 8VSON
$1.67
Available to order
Reference Price (USD)
250+
$1.15620
500+
$1.01520
750+
$0.91932
1,250+
$0.84600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Texas Instruments CSD18563Q5AT is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
CSD18563Q5AT
$1.67
Product details
Enhance your electronic designs with the CSD18563Q5AT single MOSFET transistor from Texas Instruments, a premium Discrete Semiconductor Product in the Transistors - FETs, MOSFETs - Single classification. This power-efficient component excels in switching applications, delivering robust performance with minimal energy loss. The CSD18563Q5AT features an optimized gate drive characteristic that ensures smooth operation across various voltage ranges. Its compact design doesn't compromise on power handling capabilities, making it suitable for space-constrained applications. Notable advantages include superior noise immunity, stable operation under varying load conditions, and enhanced electrostatic discharge protection. These qualities make the CSD18563Q5AT particularly valuable for medical equipment, telecommunications infrastructure, and aerospace electronics. Implement this MOSFET in your next project involving DC-DC converters, load switches, or power distribution systems. The component's reliability and efficiency will significantly improve your system's overall performance. For engineers seeking quality MOSFET solutions, the CSD18563Q5AT represents an excellent choice. Visit our website to request a quote or submit your inquiry directly through our online portal for prompt assistance.
General specs
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.8mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1500 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 116W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
