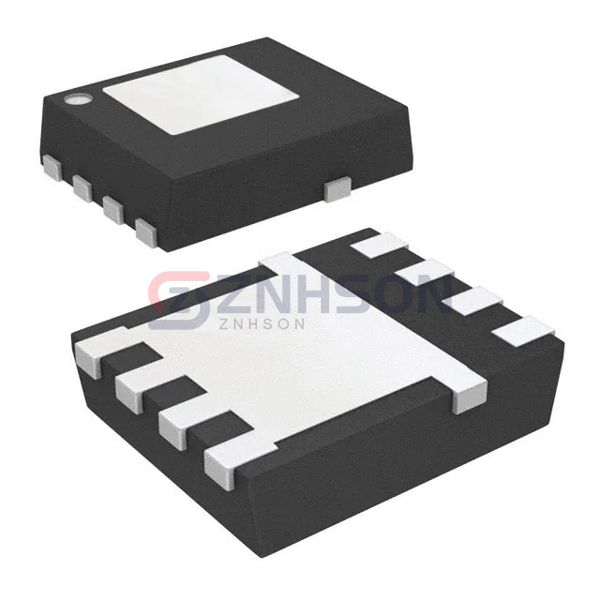

CSD16322Q5C
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 21A/97A 8SON
$1.45
Available to order
Reference Price (USD)
1+
$1.45000
500+
$1.4355
1000+
$1.421
1500+
$1.4065
2000+
$1.392
2500+
$1.3775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Texas Instruments CSD16322Q5C is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
CSD16322Q5C
$1.45
Product details
Texas Instruments's CSD16322Q5C stands out in the Discrete Semiconductor Products market as a top-tier single MOSFET transistor in the Transistors - FETs, MOSFETs - Single segment. This component combines cutting-edge semiconductor technology with practical design features for superior electrical performance. The CSD16322Q5C demonstrates exceptional characteristics including low gate charge, excellent switching behavior, and reliable overcurrent protection. These features translate to reduced power losses and extended device lifespan in your applications. The transistor's robust construction ensures stable operation in challenging environmental conditions, from temperature extremes to mechanical stress. Industrial engineers will appreciate its versatility in robotics control systems, welding equipment, and power tool applications. For consumer electronics, it's perfect for high-end audio systems, gaming consoles, and smart home devices. The CSD16322Q5C also performs exceptionally in renewable energy applications such as solar inverters and wind turbine controls. With its balanced performance metrics, this MOSFET provides the ideal solution for your power management needs. Ready to incorporate this high-quality component into your designs? Submit your inquiry through our user-friendly online platform for quick response and competitive pricing options.
General specs
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 97A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 8V
- Vgs(th) (Max) @ Id: 1.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 9.7 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 1365 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SON
- Package / Case: 8-PowerTDFN
