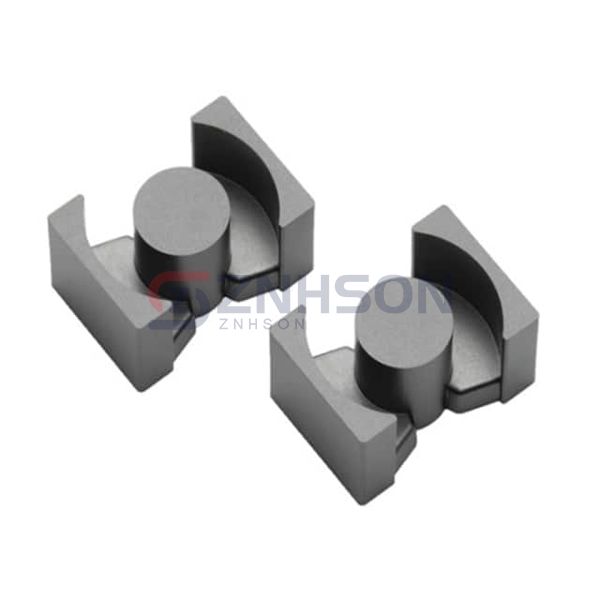

PC95PQ32/20Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQ 9.12UH 2PC SET
$11.28
Available to order
Reference Price (USD)
1+
$10.75000
10+
$9.15400
25+
$6.96520
50+
$6.76600
104+
$5.97000
312+
$5.57199
520+
$5.17400
1,040+
$4.97500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC95PQ32/20Z-12 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC95PQ32/20Z-12
$11.28
Product details
Optimize your magnetic components with the PC95PQ32/20Z-12 ferrite core from TDK Corporation. This core is engineered to deliver exceptional performance in high-frequency applications, ensuring low energy loss and high efficiency. Its superior magnetic properties make it a reliable choice for transformers and inductors in various industries. The PC95PQ32/20Z-12 features excellent thermal conductivity, preventing performance degradation under heavy loads. Its compact and lightweight design allows for easy integration into space-constrained applications. From medical devices to aerospace systems, this ferrite core meets the demands of cutting-edge technology. Choose TDK Corporation for high-quality materials and innovative design. Don't miss out on the benefits of the PC95PQ32/20Z-12 request a quote today and elevate your engineering projects.
General specs
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 32 x 20
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 9.12 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.33
- Effective Length (le) mm: 55.5
- Effective Area (Ae) mm²: 170
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 9420
- Finish: Uncoated
- Height: 0.809" (20.55mm)
- Length: 1.260" (32.00mm)
- Width: 0.866" (22.00mm)
