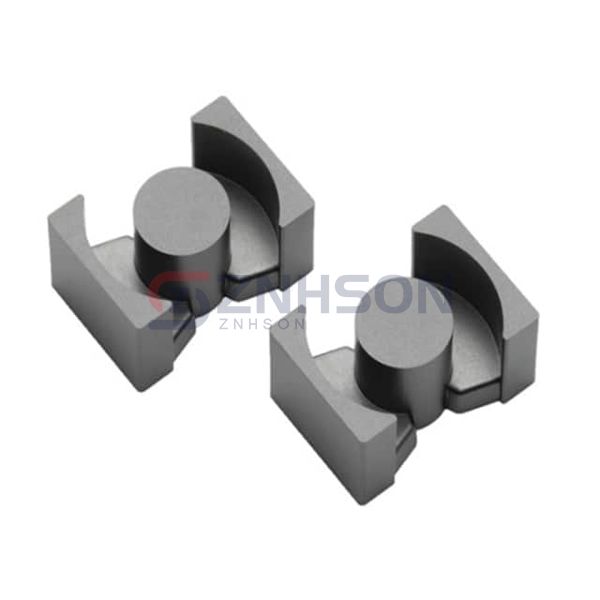

PC95PQ26/25Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQ 6.52UH 2PC SET
$8.39
Available to order
Reference Price (USD)
1+
$7.99000
10+
$6.80800
25+
$5.18000
50+
$5.03200
160+
$4.44000
320+
$4.14400
640+
$3.84800
1,120+
$3.70000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC95PQ26/25Z-12 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC95PQ26/25Z-12
$8.39
Product details
The PC95PQ26/25Z-12 from TDK Corporation is a top-tier ferrite core crafted for precision magnetic applications. Its high permeability and low core loss make it an excellent choice for transformers and inductors. This core is designed to operate efficiently across a broad frequency range, ensuring versatility in various electronic systems. The PC95PQ26/25Z-12 features robust thermal management, maintaining performance even in high-temperature environments. Its compact design allows for seamless integration into space-sensitive applications. From telecommunications to automotive electronics, this ferrite core meets the highest standards of quality and reliability. Choose TDK Corporation for advanced magnetic solutions that drive innovation. Don't wait request a quote today and experience the benefits of the PC95PQ26/25Z-12 in your designs.
General specs
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 26 x 25
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 6.52 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.47
- Effective Length (le) mm: 55.5
- Effective Area (Ae) mm²: 118
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 6530
- Finish: Uncoated
- Height: 0.974" (24.75mm)
- Length: 1.043" (26.50mm)
- Width: 0.748" (19.00mm)
