PC95PQ20/20Z-12
TDK Corporation
TDK Corporation

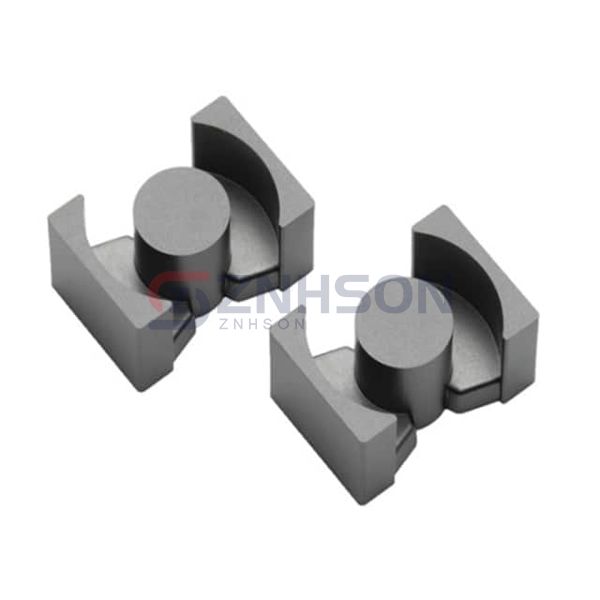

FERRITE CORE PQ 4UH 2PC SET
$8.39
Available to order
Reference Price (USD)
1+
$7.99000
10+
$6.80800
25+
$5.18000
50+
$5.03200
100+
$4.44000
250+
$4.14400
500+
$3.84800
1,000+
$3.70000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC95PQ20/20Z-12 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC95PQ20/20Z-12
$8.39
Product details
Discover the PC95PQ20/20Z-12 ferrite core by TDK Corporation, a high-performance solution for transformer and inductor components. This core is engineered to deliver exceptional magnetic properties, including high saturation flux density and minimal energy loss. Its superior thermal stability ensures reliable operation in demanding applications. The PC95PQ20/20Z-12 is perfect for use in power electronics, renewable energy systems, and industrial automation. Its uniform material composition guarantees consistent performance, critical for precision engineering. With TDK Corporation's expertise, you can trust the PC95PQ20/20Z-12 to meet your technical needs. Elevate your designs with this advanced ferrite core contact us today for pricing and availability.
General specs
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 20 x 20
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 4 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.74
- Effective Length (le) mm: 45.4
- Effective Area (Ae) mm²: 62
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 2790
- Finish: Uncoated
- Height: 0.795" (20.20mm)
- Length: 0.807" (20.50mm)
- Width: 0.551" (14.00mm)
