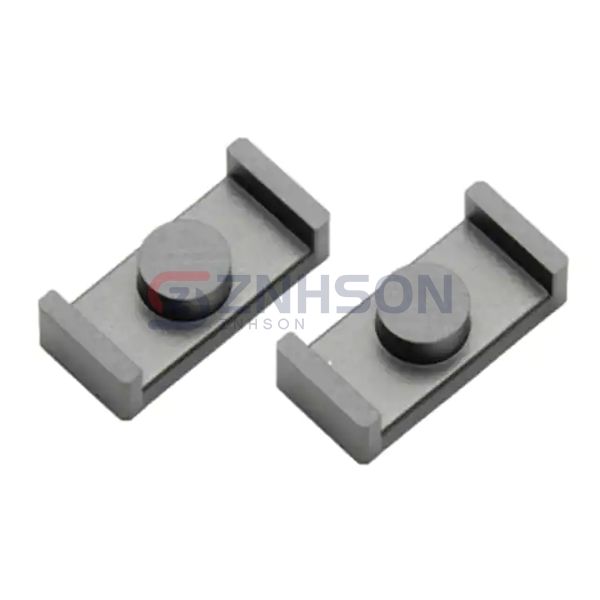

PC95ER22/5.5/15-Z
TDK Corporation
TDK Corporation
FERRITE CORE ER 4.3UH 2PC SET
$1.69
Available to order
Reference Price (USD)
1+
$1.61000
10+
$1.38600
25+
$1.05320
50+
$0.99800
100+
$0.88700
256+
$0.83160
512+
$0.77615
1,024+
$0.71240
5,120+
$0.69300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC95ER22/5.5/15-Z is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC95ER22/5.5/15-Z
$1.69
Product details
General specs
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 22 x 5.5 x 15
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 4.3 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.51
- Effective Length (le) mm: 46.1
- Effective Area (Ae) mm²: 23.2
- Minimum Core Cross Section (Amin) mm²: 36.3
- Effective Magnetic Volume (Ve) mm³: 1070
- Finish: Uncoated
- Height: 0.108" (2.75mm)
- Length: 0.870" (22.10mm)
- Width: 0.600" (15.25mm)
