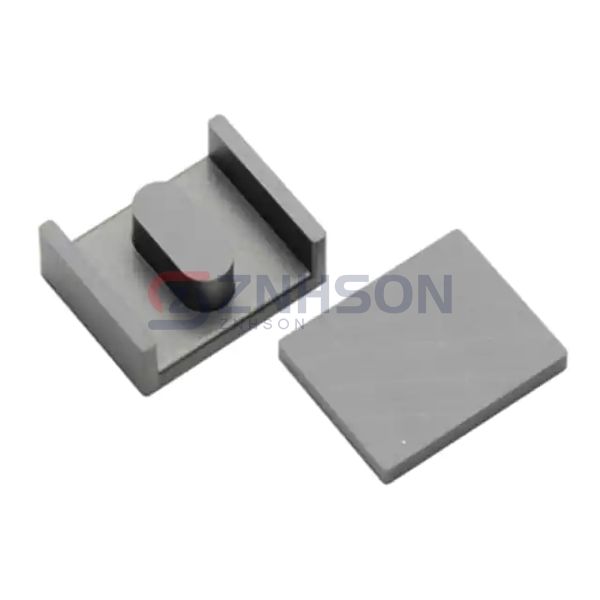

PC95ELT22X8-Z
TDK Corporation
TDK Corporation
FERRITE CORE ELT 6.54UH 1SET
$3.70
Available to order
Reference Price (USD)
1+
$3.53000
10+
$3.02400
25+
$2.26800
50+
$2.20500
100+
$1.95300
256+
$1.82699
512+
$1.70100
1,024+
$1.57500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC95ELT22X8-Z is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC95ELT22X8-Z
$3.70
Product details
Discover the PC95ELT22X8-Z from TDK Corporation, a high-performance ferrite core designed for efficient magnetic applications in transformers and inductors. This ferrite core is engineered to minimize energy loss and maximize thermal stability, making it ideal for high-frequency operations. Its robust construction ensures durability and reliability in demanding environments. The PC95ELT22X8-Z is perfect for applications requiring precise magnetic performance and consistent results. With its excellent permeability and low coercivity, this core is a top choice for engineers seeking quality and efficiency. Whether you're designing power supplies or communication devices, the PC95ELT22X8-Z delivers unmatched performance. Explore its potential in your next project and experience the difference of premium ferrite cores. Contact us today for a quote and elevate your designs with TDK Corporation's cutting-edge solutions.
General specs
- Product Status: Active
- Core Type: ELH, PLT
- Supplier Device Package: ELT 22 x 8
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 6.54 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.41
- Effective Length (le) mm: 66.2
- Effective Area (Ae) mm²: 27.3
- Minimum Core Cross Section (Amin) mm²: 64.2
- Effective Magnetic Volume (Ve) mm³: 1810
- Finish: Uncoated
- Height: 0.237" (6.02mm)
- Length: 0.866" (22.00mm)
- Width: 0.693" (17.60mm)
