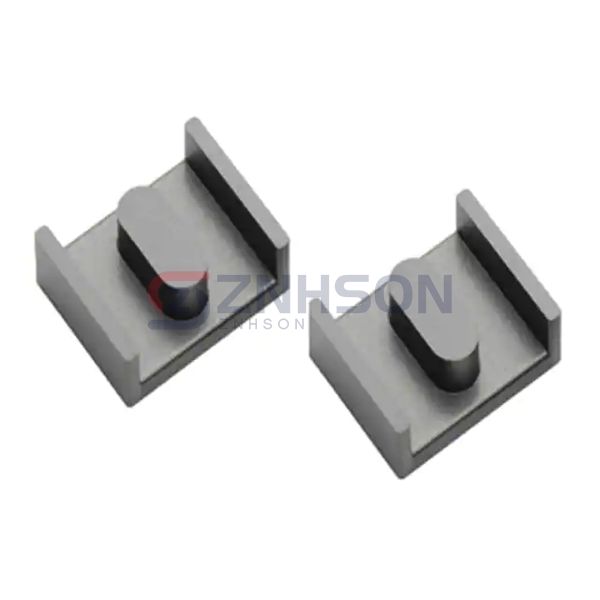

PC95EL25X8.6-Z
TDK Corporation
TDK Corporation
FERRITE CORE EL 7.54UH 2PC SET
$2.61
Available to order
Reference Price (USD)
1+
$2.61000
10+
$2.25000
25+
$1.71000
50+
$1.62000
100+
$1.44000
288+
$1.35000
576+
$1.26000
1,152+
$1.15650
5,184+
$1.12500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC95EL25X8.6-Z is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC95EL25X8.6-Z
$2.61
Product details
The PC95EL25X8.6-Z from TDK Corporation is a versatile ferrite core tailored for transformer and inductor components. Its advanced material composition ensures optimal magnetic flux density and reduced core losses, enhancing overall efficiency. This core is designed to operate seamlessly across a wide frequency range, making it suitable for various electronic applications. The PC95EL25X8.6-Z features excellent temperature stability, ensuring consistent performance even under extreme conditions. Its compact design allows for easy integration into existing systems without compromising performance. Ideal for use in power conversion, RF applications, and noise suppression, this ferrite core is a must-have for modern electronics. Trust TDK Corporation for high-quality magnetic solutions that meet your technical requirements. Ready to upgrade your components? Submit your inquiry now and discover the benefits of the PC95EL25X8.6-Z.
General specs
- Product Status: Active
- Core Type: EL
- Supplier Device Package: EL 25 x 8.6
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 7.54 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.35
- Effective Length (le) mm: 30
- Effective Area (Ae) mm²: 85.6
- Minimum Core Cross Section (Amin) mm²: 83
- Effective Magnetic Volume (Ve) mm³: 2570
- Finish: Uncoated
- Height: 0.169" (4.29mm)
- Length: 0.984" (25.00mm)
- Width: 0.787" (20.00mm)
