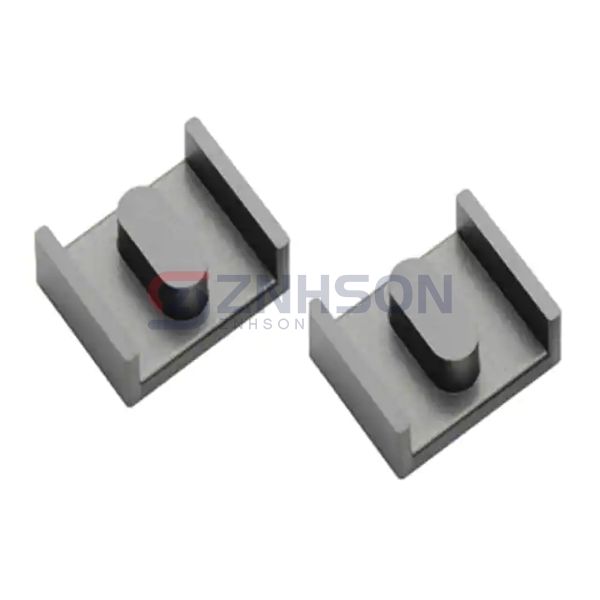

PC95EL22X8-Z
TDK Corporation
TDK Corporation
FERRITE CORE EL 6.54UH 2PC SET
$2.50
Available to order
Reference Price (USD)
1+
$2.38000
10+
$2.05000
25+
$1.55800
50+
$1.47600
100+
$1.31200
288+
$1.23000
576+
$1.14800
1,152+
$1.05370
5,184+
$1.02500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC95EL22X8-Z is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC95EL22X8-Z
$2.50
Product details
Enhance your magnetic designs with the PC95EL22X8-Z ferrite core from TDK Corporation. This core is specifically crafted to deliver superior performance in transformer and inductor applications. Its high saturation flux density and low core loss make it an excellent choice for high-efficiency systems. The PC95EL22X8-Z is built to withstand high temperatures and mechanical stress, ensuring long-term reliability. Its uniform material properties guarantee consistent magnetic characteristics, critical for precision applications. From automotive electronics to renewable energy systems, this ferrite core excels in diverse industries. Its adaptability and performance make it a favorite among engineers and designers. Don't settle for less choose TDK Corporation's PC95EL22X8-Z for your next project. Get in touch today to request a quote and take the first step toward optimized magnetic performance.
General specs
- Product Status: Active
- Core Type: EL
- Supplier Device Package: EL 22 x 8
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 6.54 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.41
- Effective Length (le) mm: 66.2
- Effective Area (Ae) mm²: 27.3
- Minimum Core Cross Section (Amin) mm²: 64.2
- Effective Magnetic Volume (Ve) mm³: 1810
- Finish: Uncoated
- Height: 0.158" (4.02mm)
- Length: 0.866" (22.00mm)
- Width: 0.693" (17.60mm)
