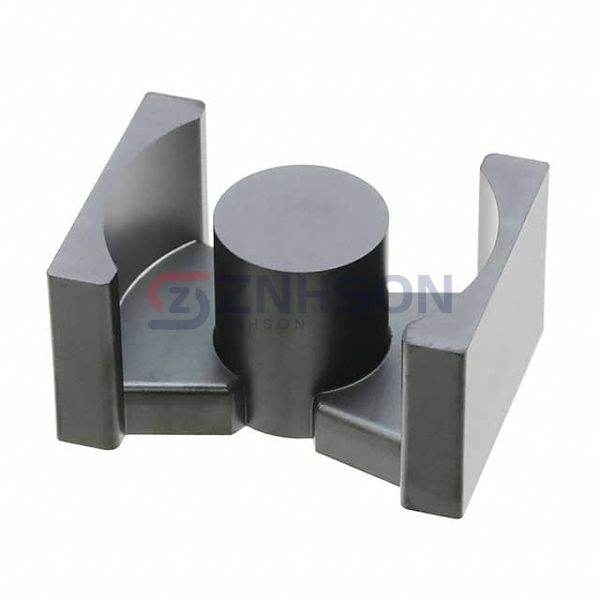

PC44PQ20/16Z-12
TDK Corporation
TDK Corporation
FERRITE CORE 2PC SET
$1.30
Available to order
Reference Price (USD)
1+
$1.30000
500+
$1.287
1000+
$1.274
1500+
$1.261
2000+
$1.248
2500+
$1.235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
TDK Corporation PC44PQ20/16Z-12 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PC44PQ20/16Z-12
$1.30
Product details
The PC44PQ20/16Z-12 by TDK Corporation is a premium ferrite core designed for high-frequency transformer and inductor applications. Its unique composition ensures minimal eddy current losses and superior magnetic permeability. This core is ideal for applications requiring high efficiency and stability, such as switch-mode power supplies and telecommunications equipment. The PC44PQ20/16Z-12 offers excellent thermal management, reducing the risk of overheating in compact designs. Its robust construction ensures durability, even in harsh operating conditions. Whether you're working on industrial automation or consumer electronics, this ferrite core provides the performance you need. Trust TDK Corporation to deliver cutting-edge magnetic solutions that meet your exact specifications. Ready to experience the difference? Contact us now for pricing details and availability.
General specs
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 20 x 16
- Material: PC44
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.605
- Effective Length (le) mm: 37.4
- Effective Area (Ae) mm²: 62
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 2310
- Finish: Uncoated
- Height: 0.638" (16.20mm)
- Length: 0.807" (20.50mm)
- Width: 0.551" (14.00mm)
