UF4005HR1G

Taiwan Semiconductor Corporation

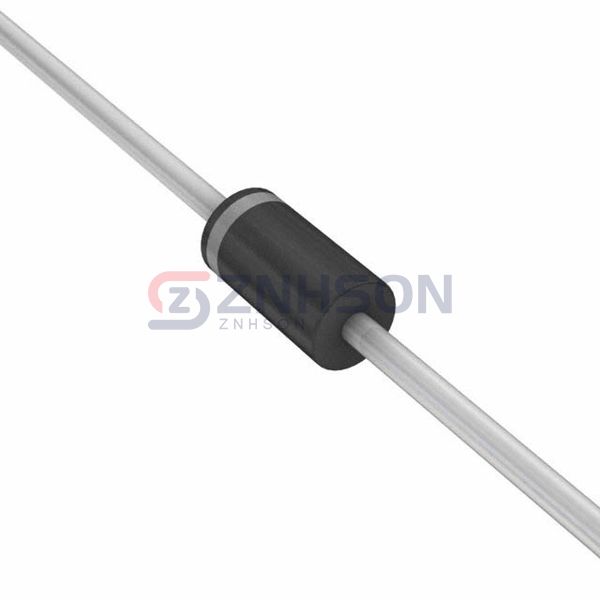

UF4005HR1G Preview
Taiwan Semiconductor Corporation
DIODE GEN PURP 600V 1A DO204AL
$0.00
Available to order
Reference Price (USD)
10,000+
$0.04930
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Taiwan Semiconductor Corporation UF4005HR1G is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
UF4005HR1G

UF4005HR1G

$0.00

Product details

Optimize your power electronics with Taiwan Semiconductor Corporation's UF4005HR1G single rectifier diode, a high-efficiency solution for modern circuit designs. This diode features superior current handling capabilities combined with low power dissipation, making it ideal for energy-conscious applications. The UF4005HR1G demonstrates excellent performance in voltage clamping, freewheeling, and reverse polarity protection circuits. Its advanced semiconductor design ensures reliable operation in switching power supplies, DC-DC converters, and battery management systems. The component's thermal characteristics allow for operation in high ambient temperature environments without performance degradation. Common industry applications include electric vehicle charging systems, industrial motor drives, and photovoltaic inverters. Additional advantages include consistent forward voltage characteristics and robust surge protection. Engineers will appreciate the diode's reliability in mission-critical power conversion tasks. For detailed technical information and volume pricing options, contact our sales team today.

General specs

  • Product Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600 V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 1 A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 75 ns
  • Current - Reverse Leakage @ Vr: 5 µA @ 600 V
  • Capacitance @ Vr, F: 17pF @ 4V, 1MHz
  • Mounting Type: Through Hole
  • Package / Case: DO-204AL, DO-41, Axial
  • Supplier Device Package: DO-204AL (DO-41)
  • Operating Temperature - Junction: -55°C ~ 150°C
