TSF20H120C

Taiwan Semiconductor Corporation

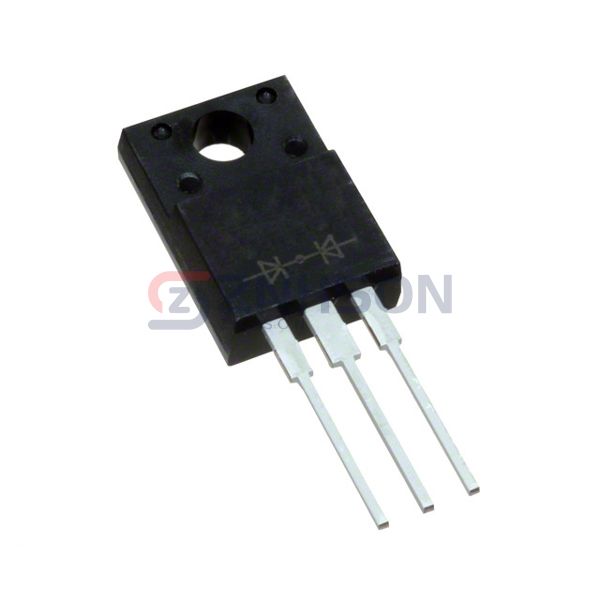

TSF20H120C Preview
Taiwan Semiconductor Corporation
DIODE ARRAY SCHOTT 120V ITO220AB
$1.20
Available to order
Reference Price (USD)
1+
$1.20135
500+
$1.1893365
1000+
$1.177323
1500+
$1.1653095
2000+
$1.153296
2500+
$1.1412825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Taiwan Semiconductor Corporation TSF20H120C is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TSF20H120C

TSF20H120C

$1.20

Product details

The TSF20H120C from Taiwan Semiconductor Corporation is a high-performance rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable current rectification with minimal energy loss. Ideal for both industrial and consumer electronics, it offers robust performance in demanding environments. The TSF20H120C features low forward voltage drop and high surge current capability, making it suitable for a wide range of power supply designs. Its compact form factor and excellent thermal characteristics ensure long-term reliability. Common applications include power adapters, battery chargers, and LED lighting systems. For automotive use, it enhances the efficiency of alternator rectifiers and voltage regulators. In renewable energy systems, this diode is perfect for solar panel inverters and wind turbine controllers. Upgrade your designs with the TSF20H120C and experience superior rectification performance. Contact us today for pricing and availability.

General specs

  • Product Status: Active
  • Diode Configuration: 1 Pair Common Cathode
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 120 V
  • Current - Average Rectified (Io) (per Diode): 10A
  • Voltage - Forward (Vf) (Max) @ If: 870 mV @ 10 A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): -
  • Current - Reverse Leakage @ Vr: 250 µA @ 120 V
  • Operating Temperature - Junction: -55°C ~ 150°C
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack, Isolated Tab
  • Supplier Device Package: ITO-220AB
