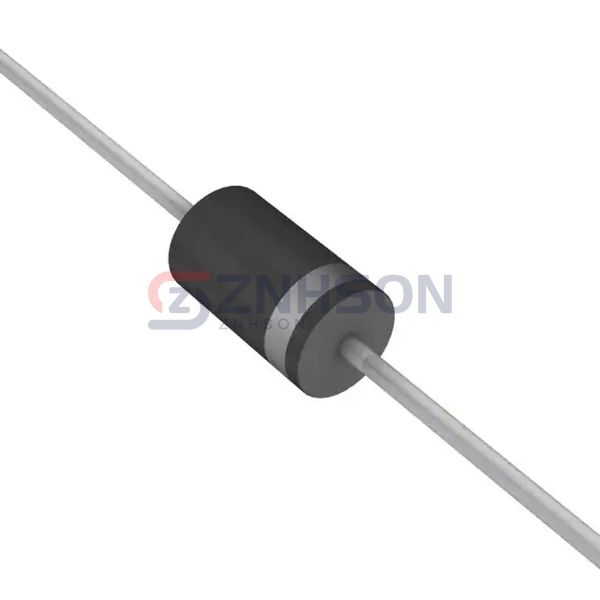

SR504 A0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 40V 5A DO201AD
$1.02
Available to order
Reference Price (USD)
1+
$1.02000
500+
$1.0098
1000+
$0.9996
1500+
$0.9894
2000+
$0.9792
2500+
$0.969
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Taiwan Semiconductor Corporation SR504 A0G is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
SR504 A0G
$1.02
Product details
The SR504 A0G by Taiwan Semiconductor Corporation is a premium-quality single rectifier diode designed for demanding electronic applications. This component offers outstanding rectification efficiency with low forward voltage drop, ensuring optimal power conversion performance. Its robust construction features advanced junction technology for improved current handling and thermal stability. The diode's fast switching characteristics make it ideal for high-frequency power supplies and switching regulators. Industrial applications include welding equipment, elevator controls, and factory automation systems. The SR504 A0G also excels in renewable energy systems such as wind turbine converters. Key benefits include excellent reverse recovery properties and consistent operation across temperature extremes. Designed for reliability, this diode meets rigorous industry standards for quality and performance. Whether for prototyping or mass production, the SR504 A0G delivers exceptional results. Submit your inquiry now to access this high-performance rectifier solution for your technical requirements.
General specs
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 40 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 150°C
