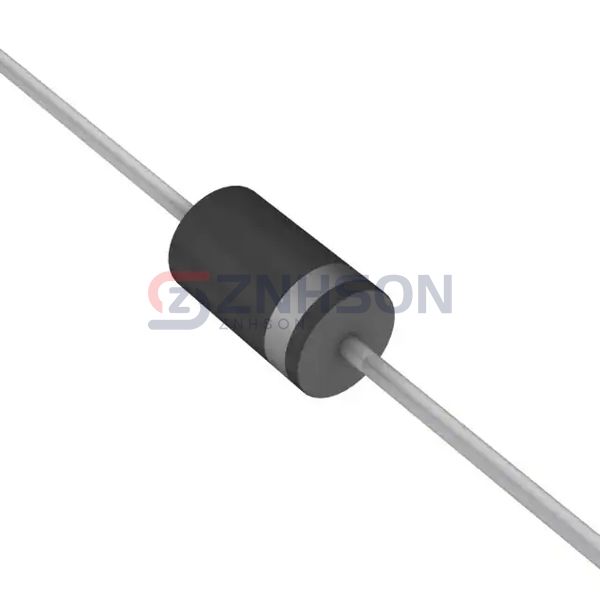

1N5822H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 40V 3A DO201AD
$0.20
Available to order
Reference Price (USD)
1+
$0.20324
500+
$0.2012076
1000+
$0.1991752
1500+
$0.1971428
2000+
$0.1951104
2500+
$0.193078
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Taiwan Semiconductor Corporation 1N5822H is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
1N5822H
$0.20
Product details
The 1N5822H from Taiwan Semiconductor Corporation represents a breakthrough in single rectifier diode technology, offering unmatched performance in power conversion applications. This diode features an innovative design that minimizes switching losses while maximizing current handling capacity. Its precision-engineered junction provides stable characteristics under varying load conditions, ensuring reliable operation in demanding environments. The 1N5822H is particularly effective in high-voltage applications such as X-ray generators and electrostatic precipitators. Industrial automation systems benefit from its fast response times and consistent performance. Other key applications include railway traction systems, mining equipment, and oil field instrumentation. The diode's rugged construction meets military-grade specifications for shock and vibration resistance. With its combination of high efficiency and durability, the 1N5822H is an excellent choice for critical power electronics. Request a sample today to experience its superior performance in your application.
General specs
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 525 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 40 V
- Capacitance @ Vr, F: 200pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 125°C
