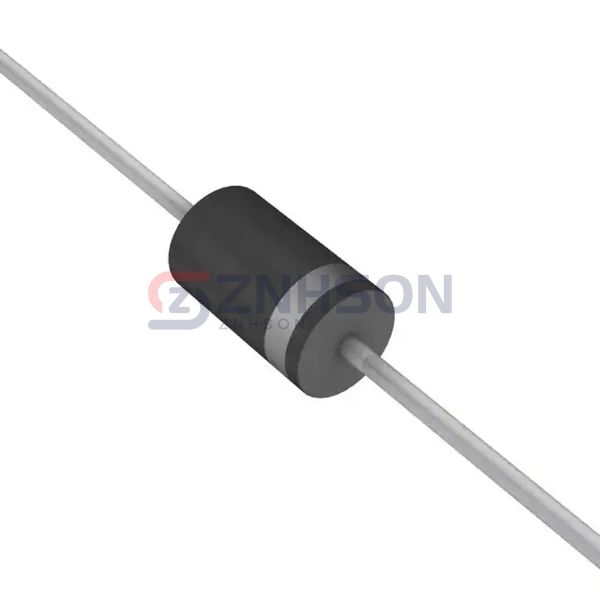

1N5820H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 20V 3A DO201AD
$0.20
Available to order
Reference Price (USD)
1+
$0.20324
500+
$0.2012076
1000+
$0.1991752
1500+
$0.1971428
2000+
$0.1951104
2500+
$0.193078
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Taiwan Semiconductor Corporation 1N5820H is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
1N5820H
$0.20
Product details
Experience superior rectification performance with the 1N5820H single diode from Taiwan Semiconductor Corporation, engineered for excellence in power electronics. This component offers an optimal balance between forward voltage characteristics and reverse leakage current, ensuring efficient energy conversion. The diode's advanced construction provides excellent thermal stability and long-term reliability in continuous operation. Designers will appreciate its versatility in applications ranging from consumer appliances to industrial power systems. The 1N5820H performs exceptionally well in UPS systems, electric vehicle power trains, and renewable energy converters. Its robust design withstands electrical transients and mechanical stress, making it ideal for transportation and infrastructure applications. Additional benefits include consistent batch-to-batch performance and compatibility with automated assembly processes. For engineers seeking a reliable rectification solution, the 1N5820H delivers outstanding results. Contact us today to learn more about this high-performance diode and its applications.
General specs
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 475 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 200pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 125°C
