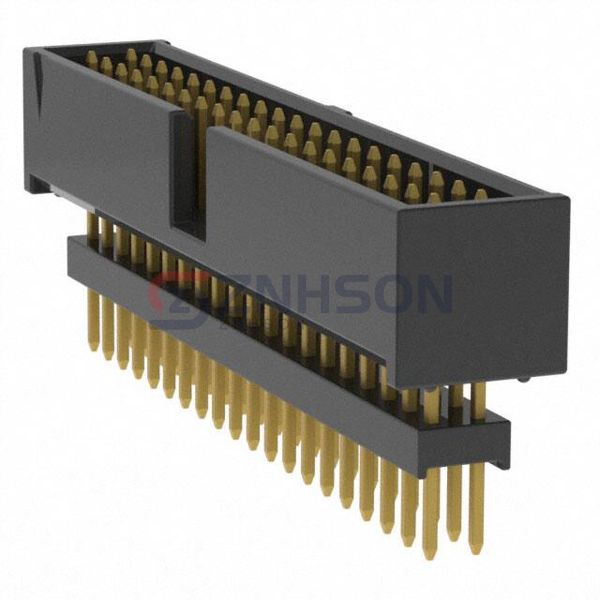

ZSS-120-02-G-D-563
Samtec Inc.
Samtec Inc.
CONN HDR .100" 40POS
$8.64
Available to order
Reference Price (USD)
1+
$8.64000
500+
$8.5536
1000+
$8.4672
1500+
$8.3808
2000+
$8.2944
2500+
$8.208
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Samtec Inc. ZSS-120-02-G-D-563 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
ZSS-120-02-G-D-563
$8.64
Product details
Experience reliable connectivity with the ZSS-120-02-G-D-563 rectangular connector header from Samtec Inc.. This male pin connector is designed for high-performance applications in various industries. Its robust construction ensures durability in harsh conditions, making it ideal for industrial automation, aerospace, and defense systems. The ZSS-120-02-G-D-563 offers excellent signal integrity and power delivery, thanks to its precision pins. Its compact design allows for easy integration into any electronic setup. The connector's user-friendly features simplify installation and maintenance. With Samtec Inc.'s commitment to quality, the ZSS-120-02-G-D-563 is a dependable choice for your projects. Ready to make the switch? Request a quote now.
General specs
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.167" (4.24mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.563" (14.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
