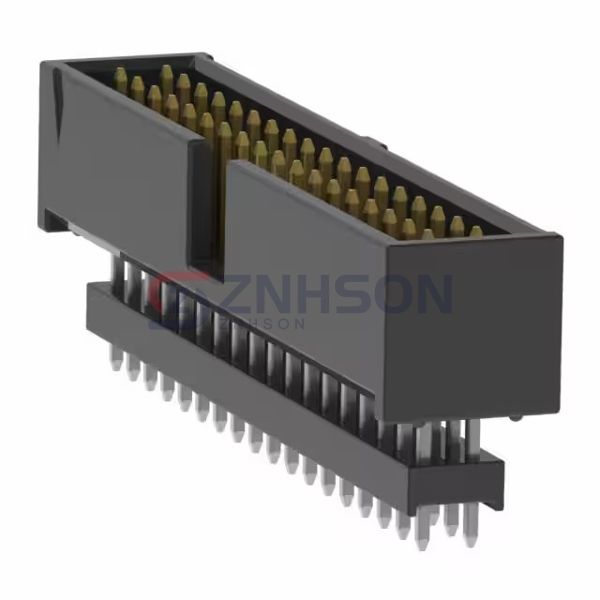

ZSS-118-01-S-D-540
Samtec Inc.
Samtec Inc.
CONN HDR .100" 36POS
$9.39
Available to order
Reference Price (USD)
1+
$9.39000
500+
$9.2961
1000+
$9.2022
1500+
$9.1083
2000+
$9.0144
2500+
$8.9205
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Samtec Inc. ZSS-118-01-S-D-540 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
ZSS-118-01-S-D-540
$9.39
Product details
The ZSS-118-01-S-D-540 from Samtec Inc. is a versatile rectangular connector header featuring male pins for secure interconnections. Designed for reliability, this connector is suitable for a broad spectrum of electronic applications. Its high-performance design ensures stable connections in industrial, automotive, and consumer electronics. The ZSS-118-01-S-D-540 offers excellent signal integrity and power transmission, making it a go-to solution for engineers. Its compact and lightweight design allows for easy integration into space-constrained environments. The connector's durability and ease of use make it a favorite among professionals. Trust Samtec Inc. to provide a connector that meets your exact requirements. Ready to upgrade your interconnections? Inquire now for more details.
General specs
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.540" (13.72mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
