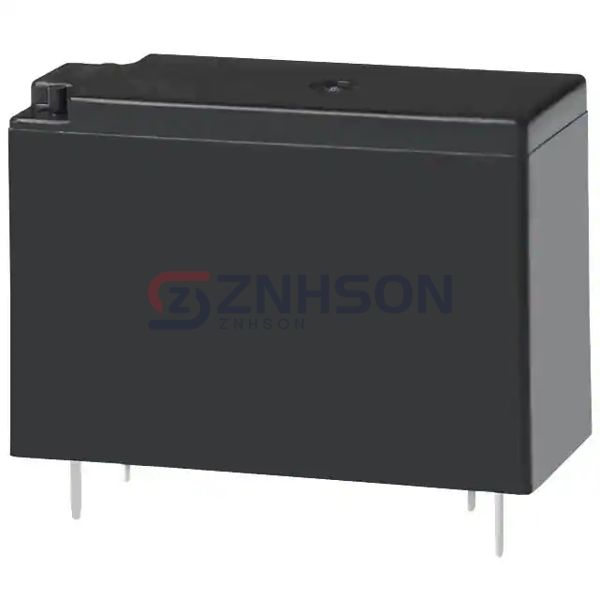

JW1AHN-B-DC24V-F
Panasonic Electric Works
Panasonic Electric Works
RELAY GEN PURPOSE SPST 5A 24V
$2.53
Available to order
Reference Price (USD)
1+
$2.52720
500+
$2.501928
1000+
$2.476656
1500+
$2.451384
2000+
$2.426112
2500+
$2.40084
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Panasonic Electric Works JW1AHN-B-DC24V-F is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
JW1AHN-B-DC24V-F
$2.53
Product details
Introducing the JW1AHN-B-DC24V-F by Panasonic Electric Works, a high-performance power relay specifically engineered for circuits over 2 amps. This relay combines cutting-edge technology with robust construction to deliver exceptional reliability. Its gold-plated contacts ensure low contact resistance and stable performance over time. The JW1AHN-B-DC24V-F is widely used in aerospace systems, defense equipment, and high-end laboratory instruments. Its hermetically sealed design provides complete protection against environmental contaminants. The relay features fast switching speeds while maintaining arc-free operation. Additional applications include electric furnace controls, large-scale audio systems, and power quality monitoring devices. With its industry-leading safety features, the JW1AHN-B-DC24V-F meets the most stringent certification requirements. The relay's intuitive terminal design simplifies wiring and reduces installation time. For mission-critical applications that demand the best, specify the JW1AHN-B-DC24V-F. Contact our technical support team for application-specific recommendations and pricing.
General specs
- Product Status: Active
- Mounting Type: Through Hole
- Coil Voltage: 24VDC
- Contact Form: SPST-NO (1 Form A)
- Contact Rating (Current): 5 A
- Switching Voltage: 250VAC, 30VDC - Max
- Coil Current: 22 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: PC Pin
- Seal Rating: Sealed - Flux Protection
- Coil Insulation: Class B
- Must Operate Voltage: 16.8 VDC
- Must Release Voltage: 2.4 VDC
- Operate Time: 15 ms
- Release Time: 5 ms
- Operating Temperature: -40°C ~ 60°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Relay Type: General Purpose
