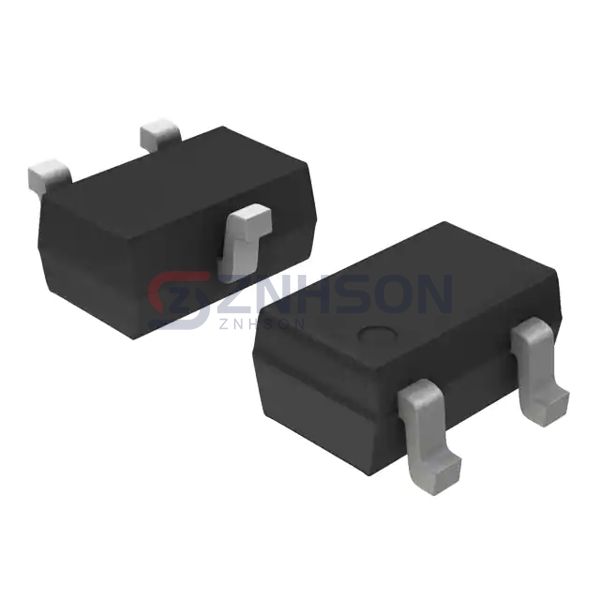

MUN5236T1G
onsemi
onsemi
TRANS PREBIAS NPN 50V SC70-3
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
onsemi MUN5236T1G is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
MUN5236T1G
$0.03
Product details
onsemi's MUN5236T1G sets the benchmark for pre-biased BJTs with its advanced epitaxial process, yielding superior current handling per footprint area. The device demonstrates exceptional beta linearity under varying collector currents, crucial for instrumentation amplifiers. Its applications span across electric vehicle charging stations, precision agricultural sensors, and industrial IoT gateways. The transistor's hermetically sealed variants address military-grade reliability requirements, while standard versions cater to commercial electronics. Features like solder-dip finish and tape-reel packaging accommodate high-volume manufacturing. Simplify your amplifier designs download the MUN5236T1G SPICE model after registering on our technical portal.
General specs
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 100 kOhms
- Resistor - Emitter Base (R2): 100 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 202 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70-3 (SOT323)
