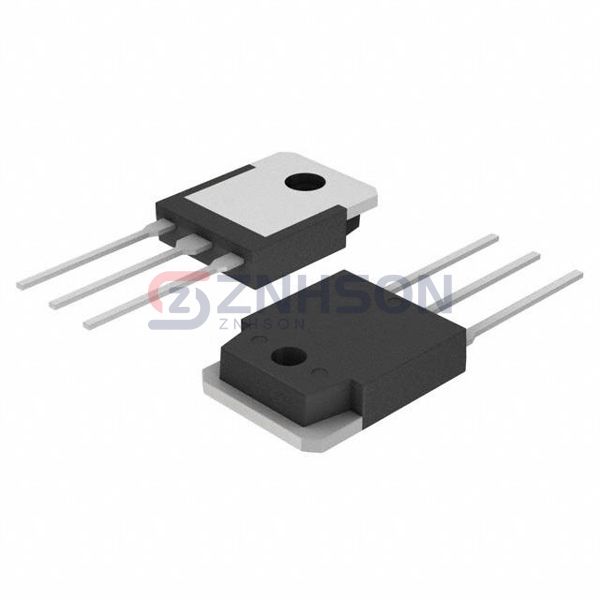

FDA20N50-F109
onsemi
onsemi
MOSFET N-CH 500V 22A TO3PN
$1.96
Available to order
Reference Price (USD)
1+
$3.92000
10+
$3.49800
450+
$2.58831
900+
$2.09863
1,350+
$1.95873
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
onsemi FDA20N50-F109 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
FDA20N50-F109
$1.96
Product details
Elevate your electronic designs with the FDA20N50-F109 single MOSFET transistor from onsemi, a premium offering in the Discrete Semiconductor Products market (Transistors - FETs, MOSFETs - Single). This high-performance component delivers exceptional power handling capabilities combined with efficient switching characteristics. The FDA20N50-F109 features advanced semiconductor architecture that ensures minimal energy loss and optimal thermal management. Its design incorporates protective features that enhance reliability in demanding operating conditions. The MOSFET demonstrates excellent performance in automotive electronics, particularly in engine control units, lighting systems, and battery management solutions. Industrial applications include motor drives, power tools, and factory automation equipment. For renewable energy systems, it's particularly effective in wind power converters and solar tracking mechanisms. The component also finds significant use in high-end computing applications and data storage systems. With its combination of power efficiency and robust construction, the FDA20N50-F109 provides design engineers with a versatile solution for various power management challenges. To discover how this MOSFET can benefit your specific application, we encourage you to submit an online inquiry. Our knowledgeable staff will provide detailed product information and purchasing options to meet your project requirements and timeline.
General specs
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 500 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 230mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 59.5 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 3120 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 280W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-3PN
- Package / Case: TO-3P-3, SC-65-3
