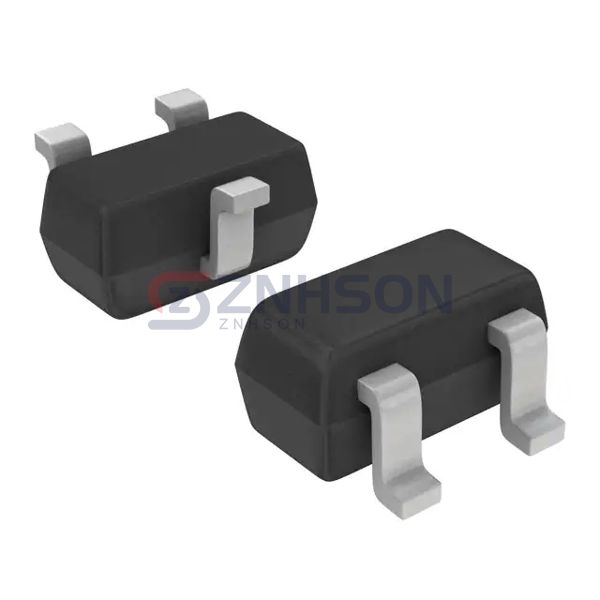

BAT54CTT1G
onsemi
onsemi
DIODE ARRAY SCHOTTKY 30V SC75
$0.31
Available to order
Reference Price (USD)
3,000+
$0.05401
6,000+
$0.04723
15,000+
$0.04045
30,000+
$0.03819
75,000+
$0.03593
150,000+
$0.03367
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
onsemi BAT54CTT1G is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
BAT54CTT1G
$0.31
Product details
Enhance your circuit designs with the BAT54CTT1G rectifier diode from onsemi, a key component in the Diodes - Rectifiers - Arrays subcategory. This diode delivers exceptional efficiency in converting AC to DC, ensuring smooth power delivery for your applications. With its high current handling capacity and fast switching characteristics, the BAT54CTT1G is ideal for power supplies, motor drives, and industrial equipment. The diode's advanced construction minimizes reverse recovery time, reducing energy loss and improving overall system performance. It is also well-suited for use in telecommunications infrastructure, where reliable power conversion is critical. In consumer electronics, this diode is commonly found in TVs, audio systems, and gaming consoles. For automotive applications, it provides dependable performance in ignition systems and onboard chargers. Trust the BAT54CTT1G for your next project and enjoy unparalleled reliability. Submit your inquiry now to learn more about this versatile diode.
General specs
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
