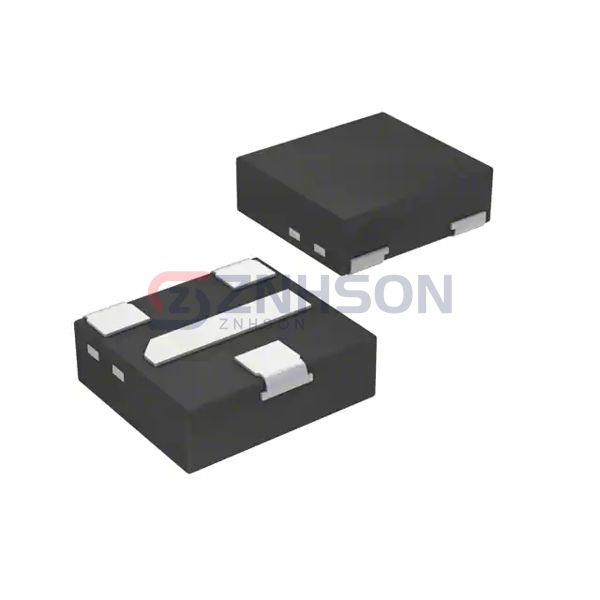

PDTC114YQC-QZ
Nexperia USA Inc.
Nexperia USA Inc.
PDTC114YQC-Q/SOT8009/DFN1412D-
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Nexperia USA Inc. PDTC114YQC-QZ is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
PDTC114YQC-QZ
$0.29
Product details
The PDTC114YQC-QZ pre-biased bipolar transistor by Nexperia USA Inc. combines switching speed and analog performance in a single cost-optimized package. Its innovative design minimizes storage time for clean pulse edges in digital applications while maintaining linearity for small-signal processing. Common implementations involve USB power delivery controllers, building security system interfaces, and drone motor drivers. The component's MSOP-8 package provides separate emitter and collector pins for layout flexibility. With 100% automated testing ensuring parameter compliance, this solution reduces incoming inspection overhead. Start your evaluation purchase PDTC114YQC-QZ evaluation kits directly from our authorized distributors with overnight shipping options.
General specs
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 100nA
- Frequency - Transition: 230 MHz
- Power - Max: 360 mW
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1412D-3
