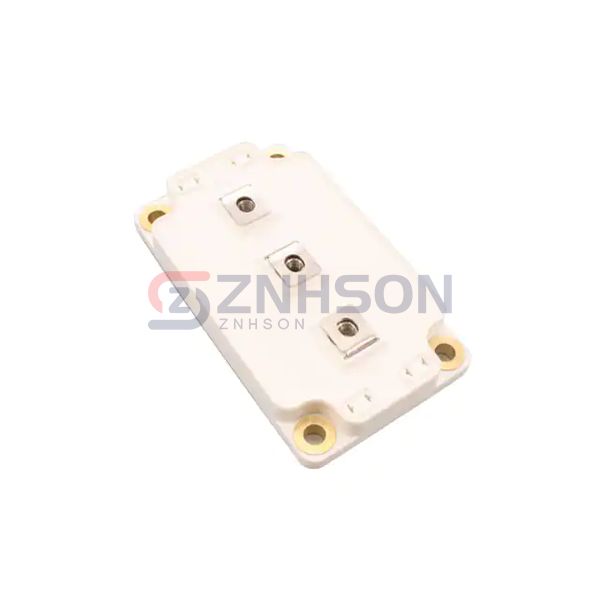

MSCDC300A120AG
Microchip Technology

Microchip Technology
PM-DIODE-SIC-SBD-SP6C
$404.23
Available to order
Reference Price (USD)
1+
$404.23000
500+
$400.1877
1000+
$396.1454
1500+
$392.1031
2000+
$388.0608
2500+
$384.0185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
DHL / Fedex / UPS | 2-5 days |
TNT | 2-6 days |
EMS | 3-7 days |
Microchip Technology MSCDC300A120AG is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
Product details
The MSCDC300A120AG by Microchip Technology is a premium rectifier diode array designed for high-density power applications. Part of the Discrete Semiconductor Products family, this array combines multiple diodes in a single package, saving space and simplifying PCB layout. Its excellent thermal management ensures stable operation under heavy loads, making it perfect for industrial automation and robotics. The MSCDC300A120AG offers low leakage current and high isolation voltage, enhancing safety and efficiency in your designs. Common uses include uninterruptible power supplies (UPS), welding equipment, and HVAC systems. In the renewable energy sector, this diode array is ideal for wind and solar power inverters. For automotive applications, it supports electric vehicle charging stations and battery management systems. Choose the MSCDC300A120AG for compact, high-performance rectification solutions. Visit our website or contact our sales team for a customized quote.
General specs
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 300A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 300 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: -
- Operating Temperature - Junction: -40°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: SP6
