JAN1N5806US

Microchip Technology

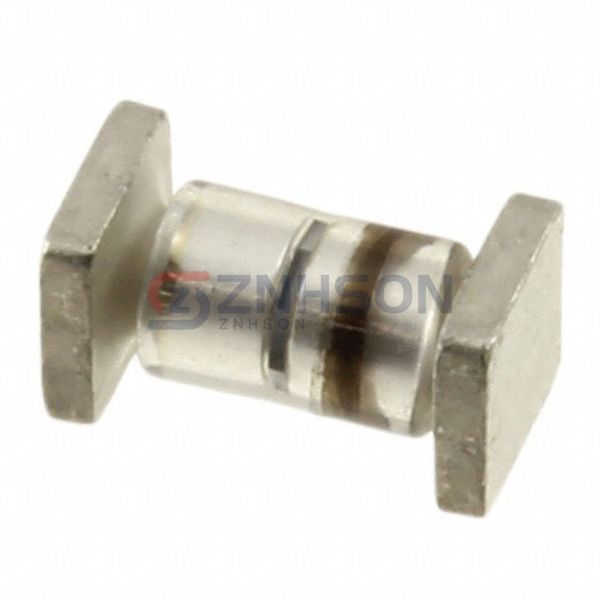

JAN1N5806US Preview
Microchip Technology
DIODE GEN PURP 150V 2.5A D5A
$6.38
Available to order
Reference Price (USD)
100+
$11.81500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Microchip Technology JAN1N5806US is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
JAN1N5806US

JAN1N5806US

$6.38

Product details

The JAN1N5806US from Microchip Technology represents a breakthrough in single rectifier diode technology, offering unmatched performance in power conversion applications. This diode features an innovative design that minimizes switching losses while maximizing current handling capacity. Its precision-engineered junction provides stable characteristics under varying load conditions, ensuring reliable operation in demanding environments. The JAN1N5806US is particularly effective in high-voltage applications such as X-ray generators and electrostatic precipitators. Industrial automation systems benefit from its fast response times and consistent performance. Other key applications include railway traction systems, mining equipment, and oil field instrumentation. The diode's rugged construction meets military-grade specifications for shock and vibration resistance. With its combination of high efficiency and durability, the JAN1N5806US is an excellent choice for critical power electronics. Request a sample today to experience its superior performance in your application.

General specs

  • Product Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 150 V
  • Current - Average Rectified (Io): 2.5A
  • Voltage - Forward (Vf) (Max) @ If: 975 mV @ 2.5 A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 25 ns
  • Current - Reverse Leakage @ Vr: 1 µA @ 150 V
  • Capacitance @ Vr, F: 25pF @ 10V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SQ-MELF, A
  • Supplier Device Package: D-5A
  • Operating Temperature - Junction: -65°C ~ 175°C
