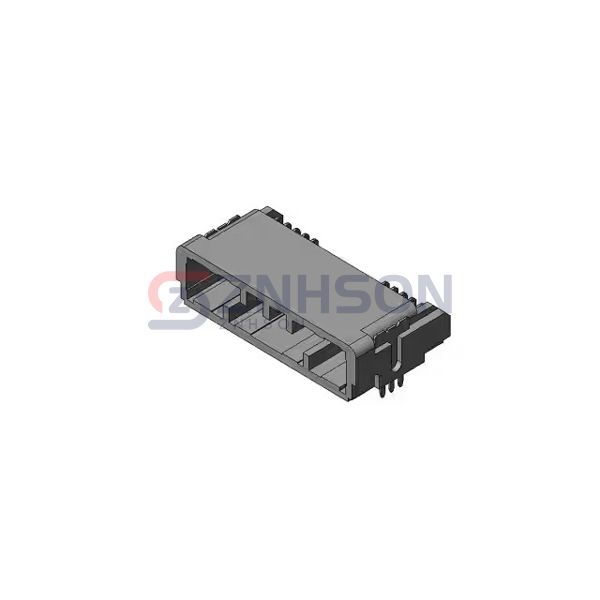

MX77A024HF1
JAE Electronics
JAE Electronics
CONN PIN HDR 24 POS R/A SMT
$9.06
Available to order
Reference Price (USD)
1+
$9.06000
500+
$8.9694
1000+
$8.8788
1500+
$8.7882
2000+
$8.6976
2500+
$8.607
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
JAE Electronics MX77A024HF1 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
MX77A024HF1
$9.06
Product details
Discover the MX77A024HF1 rectangular connector header from JAE Electronics, a top-tier solution for male pin interconnections. This connector is built to deliver exceptional performance in diverse electronic systems. Its high-quality materials and precise manufacturing ensure reliable connections in demanding applications. The MX77A024HF1 is widely used in data communication, military equipment, and renewable energy systems. Its robust design withstands environmental stressors, providing long-term durability. The connector's efficient layout facilitates easy integration into your existing setups. With JAE Electronics's reputation for excellence, the MX77A024HF1 is a smart choice for your connectivity needs. Experience the difference with this superior rectangular connector. Get started by requesting a quote today.
General specs
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.116" (2.95mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.382" (9.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
