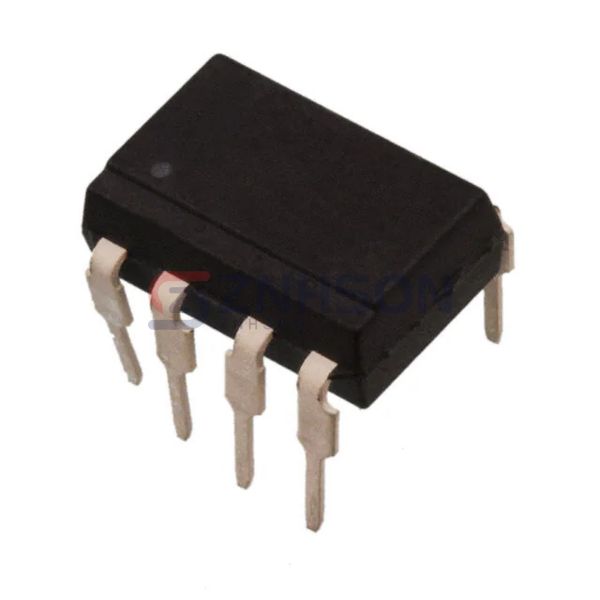

TLP620-2X
Isocom Components 2004 LTD
Isocom Components 2004 LTD
OPTOISO 5.3KV 2CH TRANS 8DIP
$1.02
Available to order
Reference Price (USD)
1+
$1.02000
10+
$0.82900
50+
$0.63760
100+
$0.57380
250+
$0.51000
500+
$0.43350
1,000+
$0.35700
2,500+
$0.33915
5,000+
$0.33150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Isocom Components 2004 LTD TLP620-2X is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TLP620-2X
$1.02
Product details
The TLP620-2X from Isocom Components 2004 LTD sets new standards for optoelectronic isolation in industrial electronics. This high-performance optoisolator features both transistor and photovoltaic outputs, providing designers with multiple options for implementing safe signal transfer across voltage domains. Its advanced optical coupling technology ensures minimal signal degradation while maintaining complete electrical isolation between circuits. The device demonstrates exceptional linearity and temperature stability, crucial for precision applications in measurement and control systems. With its compact footprint and industry-standard packaging, the TLP620-2X simplifies board layout while delivering robust isolation performance. Typical deployment scenarios include industrial motor controls, power supply regulation, and process instrumentation. The automotive sector utilizes these optoisolators for electric vehicle charging systems, while aerospace applications benefit from their reliability in harsh operating conditions. Medical equipment manufacturers incorporate the TLP620-2X in patient monitoring devices where safety isolation is paramount. For technical support or to request samples of Isocom Components 2004 LTD's TLP620-2X, our application engineers are available to assist with your design challenges.
General specs
- Product Status: Active
- Number of Channels: 2
- Voltage - Isolation: 5300Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: AC, DC
- Output Type: Transistor
- Voltage - Output (Max): 55V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.15V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -30°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
