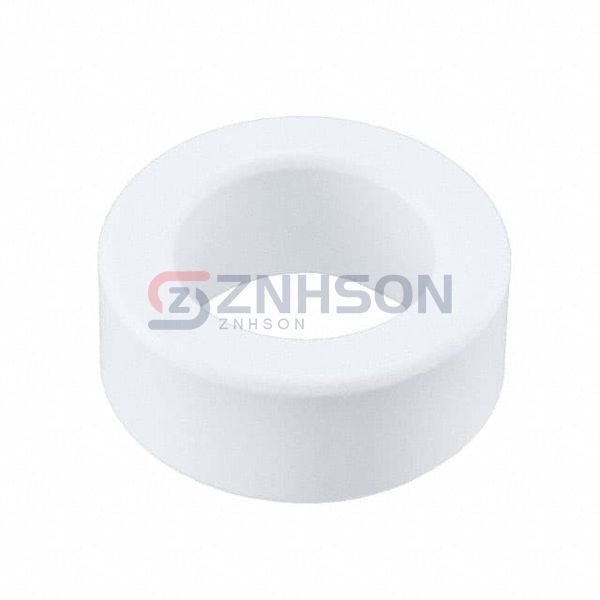

TX22/14/13-3E10-M
Ferroxcube
Ferroxcube
FERRITE CORES ROUND
$1.48
Available to order
Reference Price (USD)
1+
$1.47000
10+
$1.27100
25+
$0.96600
50+
$0.91540
100+
$0.81360
250+
$0.76276
500+
$0.71192
1,000+
$0.65344
5,000+
$0.63564
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Ferroxcube TX22/14/13-3E10-M is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
TX22/14/13-3E10-M
$1.48
Product details
The TX22/14/13-3E10-M by Ferroxcube is a premium ferrite core designed for high-frequency transformer and inductor applications. Its unique composition ensures minimal eddy current losses and superior magnetic permeability. This core is ideal for applications requiring high efficiency and stability, such as switch-mode power supplies and telecommunications equipment. The TX22/14/13-3E10-M offers excellent thermal management, reducing the risk of overheating in compact designs. Its robust construction ensures durability, even in harsh operating conditions. Whether you're working on industrial automation or consumer electronics, this ferrite core provides the performance you need. Trust Ferroxcube to deliver cutting-edge magnetic solutions that meet your exact specifications. Ready to experience the difference? Contact us now for pricing details and availability.
General specs
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: TX 22 x 14 x 13
- Material: -
- Diameter: 0.880" (22.35mm)
- Inductance Factor (Al): -
- Tolerance: -
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 1.07
- Effective Length (le) mm: 54.2
- Effective Area (Ae) mm²: 50.9
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 2750
- Finish: Epoxy
- Height: 0.510" (12.95mm)
- Length: -
- Width: -
