9478207002
Fair-Rite Products Corp.
Fair-Rite Products Corp.

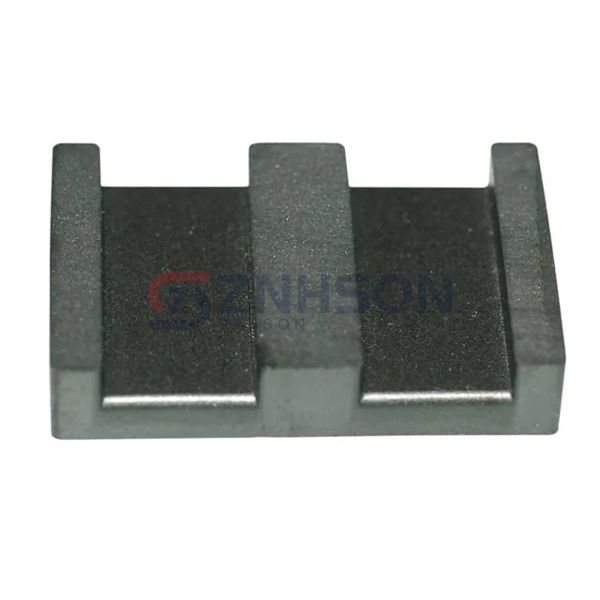

78 PLANAR E CORE SET
$16.49
Available to order
Reference Price (USD)
30+
$7.47467
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Fair-Rite Products Corp. 9478207002 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
9478207002
$16.49
Product details
Upgrade your magnetic solutions with the 9478207002 ferrite core by Fair-Rite Products Corp.. This core is designed to excel in high-frequency transformer and inductor applications, offering low energy loss and high thermal stability. Its superior material composition ensures excellent magnetic performance, even under demanding conditions. The 9478207002 is ideal for use in power supplies, RF circuits, and noise filtration systems. Its durable construction and consistent properties make it a reliable choice for engineers and designers. Whether you're developing consumer electronics or industrial equipment, this ferrite core delivers the performance you need. Trust Fair-Rite Products Corp. for innovative and high-quality magnetic components. Ready to take your projects to the next level? Contact us today for a quote on the 9478207002.
General specs
- Product Status: Active
- Core Type: E
- Supplier Device Package: -
- Material: 78
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 15.4
- Effective Length (le) mm: 80.7
- Effective Area (Ae) mm²: 520
- Minimum Core Cross Section (Amin) mm²: 515
- Effective Magnetic Volume (Ve) mm³: 41500
- Finish: Uncoated
- Height: 0.407" (10.34mm)
- Length: 2.520" (64.00mm)
- Width: 2.008" (51.00mm)
