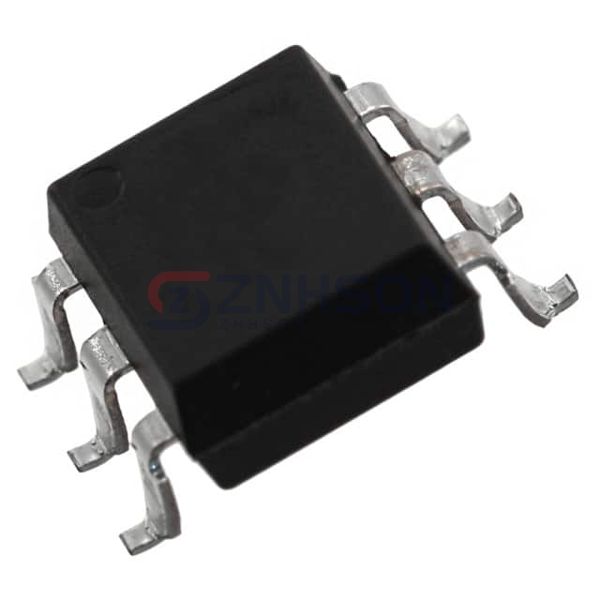

H11B3S1(TB)
Everlight Electronics Co Ltd
Everlight Electronics Co Ltd
OPTOISO 5KV DARL W/BASE 6SMD
$0.18
Available to order
Reference Price (USD)
3,000+
$0.17940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Everlight Electronics Co Ltd H11B3S1(TB) is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
H11B3S1(TB)
$0.18
Product details
The H11B3S1(TB) optoisolator from Everlight Electronics Co Ltd offers superior electrical isolation for critical electronic systems. Featuring transistor and photovoltaic outputs, this component creates a reliable barrier between high-voltage and low-voltage circuits while maintaining signal fidelity. Its innovative design ensures minimal signal distortion across the isolation barrier, making it ideal for precision measurement equipment and control systems. The device's robust construction provides excellent resistance to environmental stressors like temperature fluctuations and EMI. Designers will appreciate its compatibility with various logic families and straightforward implementation in circuit designs. Common use cases include PLC interfaces, power supply feedback loops, and battery management systems. The H11B3S1(TB) delivers exceptional performance in medical isolation barriers, factory automation, and telecommunications infrastructure. With its proven reliability and industry-compliant design, this optoisolator stands as a smart solution for your isolation needs. Visit our website to inquire about volume pricing options for Everlight Electronics Co Ltd's H11B3S1(TB).
General specs
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 100% @ 1mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 25µs, 18µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington with Base
- Voltage - Output (Max): 55V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 1V
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Gull Wing
- Supplier Device Package: 6-SMD
