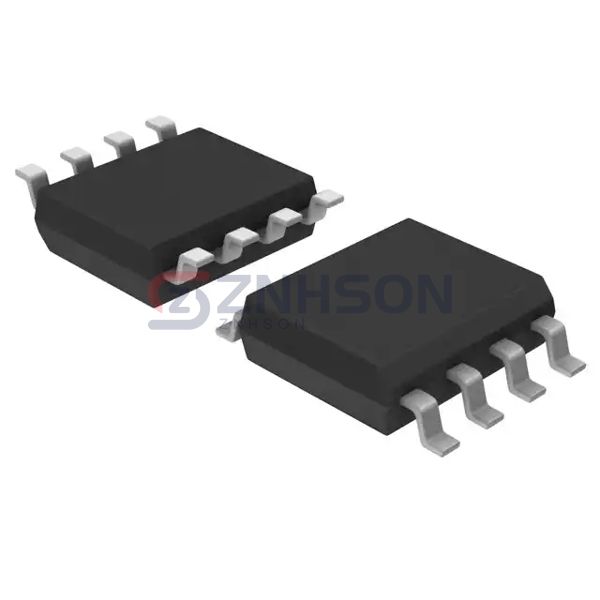

EL213-V
Everlight Electronics Co Ltd
Everlight Electronics Co Ltd
OPTOISO 3.75KV TRANS W/BASE 8SOP
$0.24
Available to order
Reference Price (USD)
1,000+
$0.23240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Everlight Electronics Co Ltd EL213-V is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
EL213-V
$0.24
Product details
Everlight Electronics Co Ltd's EL213-V represents a sophisticated solution for electrical isolation challenges in modern electronic systems. This optoisolator combines transistor and photovoltaic outputs to deliver versatile isolation capabilities for both analog and digital signals. Its optical coupling mechanism ensures complete galvanic separation while maintaining signal fidelity across the isolation barrier. The device features optimized response characteristics for precise timing applications and demonstrates excellent consistency across production batches. Industrial designers value its robust performance in noisy electrical environments and wide operating temperature range. The EL213-V finds extensive application in power electronics, including motor drives, inverters, and switching power supplies. Building automation systems utilize these optoisolators for safe signal transmission between control units, while medical equipment benefits from their reliable patient isolation. Renewable energy applications span from solar panel monitoring to battery management systems. Automotive electronics incorporate the EL213-V in electric vehicle charging stations and onboard power distribution. With Everlight Electronics Co Ltd's commitment to innovation, this optoisolator delivers cutting-edge performance for your most demanding applications. Contact our sales team for volume pricing options and lead time information on the EL213-V.
General specs
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 100% @ 10mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): 1.6µs, 2.2µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 80V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.3V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOP
