HCM1A1104V2-R56-R

Eaton - Electronics Division

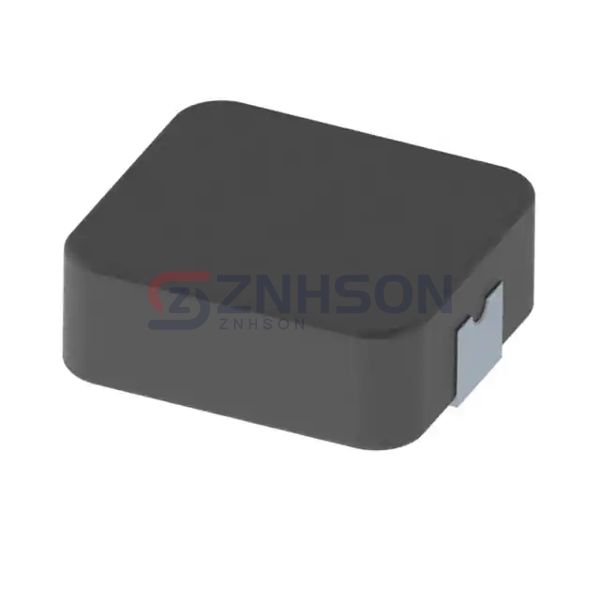

HCM1A1104V2-R56-R Preview
Eaton - Electronics Division
FIXED IND 560NH 22.5A 1.8MOHM SM
$1.04
Available to order
Reference Price (USD)
1+
$1.04346
500+
$1.0330254
1000+
$1.0225908
1500+
$1.0121562
2000+
$1.0017216
2500+
$0.991287
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

Eaton - Electronics Division HCM1A1104V2-R56-R is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
HCM1A1104V2-R56-R

HCM1A1104V2-R56-R

$1.04

Product details

The HCM1A1104V2-R56-R by Eaton - Electronics Division is a high-quality fixed inductor designed for optimal performance in a wide range of electronic applications. With excellent inductance stability and low electromagnetic interference, this inductor is perfect for use in power management systems, RF modules, and communication devices. Its robust construction ensures resistance to vibrations and temperature fluctuations, making it a dependable choice for industrial environments. The HCM1A1104V2-R56-R is also well-suited for renewable energy systems, medical devices, and automotive electronics, offering reliable operation under varying loads. Featuring a compact footprint and high efficiency, this inductor is easy to integrate into your designs without sacrificing performance. Engineers and designers trust Eaton - Electronics Division's HCM1A1104V2-R56-R for its consistent quality and innovative design. Interested in incorporating this inductor into your next project? Visit our website to submit an inquiry and learn more about customization options.

General specs

  • Product Status: Active
  • Type: -
  • Material - Core: Iron Powder
  • Inductance: 560 nH
  • Tolerance: ±20%
  • Current Rating (Amps): 22.5 A
  • Current - Saturation (Isat): 24A
  • Shielding: Shielded
  • DC Resistance (DCR): 1.8mOhm Max
  • Q @ Freq: -
  • Frequency - Self Resonant: 62MHz
  • Ratings: AEC-Q200
  • Operating Temperature: -55°C ~ 155°C
  • Inductance Frequency - Test: 100 kHz
  • Features: -
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
  • Supplier Device Package: -
  • Size / Dimension: 0.425" L x 0.394" W (10.80mm x 10.00mm)
  • Height - Seated (Max): 0.157" (4.00mm)

Viewed products

Sumida America Components Inc.

CDEP147NP-0R4NC-95

$0.00 (not set)
Johanson Technology Inc.

L-15W4N7SV4E

$0.00 (not set)
Central Technologies

CTM2F-821K

$0.00 (not set)
Chilisin Electronics

BPXX000404121R0T00

$0.00 (not set)
Eaton - Electronics Division

MCQ1V2012-R150-R

$0.00 (not set)
Eaton - Electronics Division

MPI4015V2-1R0-R

$0.00 (not set)
Central Technologies

CTDR1F-221K

$0.00 (not set)
Chilisin Electronics

BWCM0011070510NGL8

$0.00 (not set)

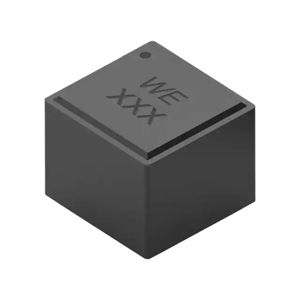

Würth Elektronik
