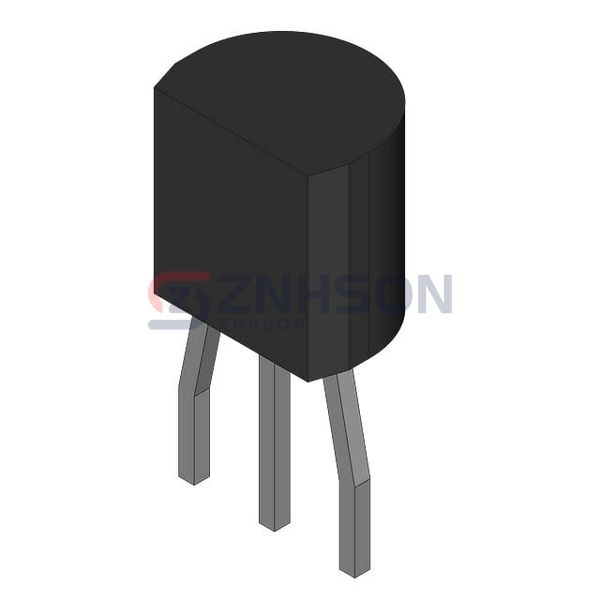

FJNS3201RTA
Fairchild Semiconductor
Fairchild Semiconductor
SMALL SIGNAL BIPOLAR TRANSISTOR
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Fairchild Semiconductor FJNS3201RTA is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
FJNS3201RTA
$0.02
Product details
Precision-engineered for signal integrity, Fairchild Semiconductor's FJNS3201RTA pre-biased BJT offers predictable gain characteristics critical for feedback systems. The transistor's monolithic construction ensures perfect resistor matching, eliminating thermal drift issues in differential amplifiers. Target applications include industrial process control instrumentation, laboratory equipment signal paths, and avionics data acquisition modules. Its gold-bonded leads provide corrosion resistance in high-humidity environments, while the halogen-free mold compound meets ecological directives. The device supports high-frequency operation up to VHF ranges when properly impedance-matched. Access reference designs incorporating FJNS3201RTA by submitting a project brief through our engineering collaboration portal.
General specs
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- Frequency - Transition: 250 MHz
- Power - Max: 300 mW
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 Short Body
- Supplier Device Package: TO-92S
