WB0603T56NSG

CAL-CHIP ELECTRONICS, INC.

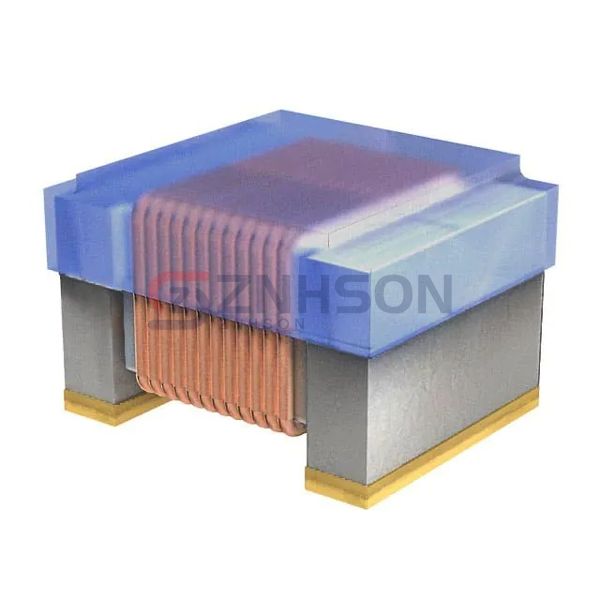

WB0603T56NSG Preview
CAL-CHIP ELECTRONICS, INC.
WW IND 0603 56NH 2%
$0.10
Available to order
Reference Price (USD)
1+
$0.09500
500+
$0.09405
1000+
$0.0931
1500+
$0.09215
2000+
$0.0912
2500+
$0.09025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

CAL-CHIP ELECTRONICS, INC. WB0603T56NSG is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
WB0603T56NSG

WB0603T56NSG

$0.10

Product details

Elevate your electronic designs with the WB0603T56NSG fixed inductor from CAL-CHIP ELECTRONICS, INC., a component known for its efficiency and durability. This inductor offers stable inductance values and low electromagnetic interference, making it ideal for high-frequency circuits and power management systems. Its rugged construction ensures performance in automotive, aerospace, and industrial applications. The WB0603T56NSG is also well-suited for medical equipment and consumer electronics, delivering reliable operation under varying conditions. With its compact size and high current capacity, this inductor is perfect for modern, space-sensitive designs. Trust CAL-CHIP ELECTRONICS, INC.'s WB0603T56NSG to meet your technical requirements and exceed expectations. Ready to get started? Submit an online inquiry now to request pricing and availability information.

General specs

  • Product Status: Active
  • Type: Drum Core, Wirewound
  • Material - Core: Ceramic
  • Inductance: 56 nH
  • Tolerance: ±2%
  • Current Rating (Amps): 600 mA
  • Current - Saturation (Isat): -
  • Shielding: Unshielded
  • DC Resistance (DCR): 310mOhm Max
  • Q @ Freq: 38 @ 200MHz
  • Frequency - Self Resonant: 1.9GHz
  • Ratings: -
  • Operating Temperature: -40°C ~ 125°C
  • Inductance Frequency - Test: 200 MHz
  • Features: -
  • Mounting Type: Surface Mount
  • Package / Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Size / Dimension: 0.071" L x 0.044" W (1.80mm x 1.12mm)
  • Height - Seated (Max): 0.040" (1.02mm)
