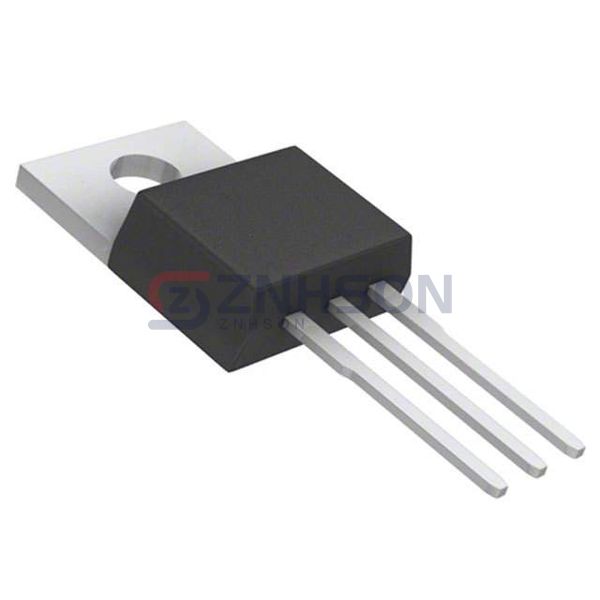

AOT9N70
Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.
MOSFET N-CH 700V 9A TO220
$0.71
Available to order
Reference Price (USD)
1,000+
$0.63210
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Alpha & Omega Semiconductor Inc. AOT9N70 is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
AOT9N70
$0.71
Product details
The AOT9N70 from Alpha & Omega Semiconductor Inc. is a technologically advanced single MOSFET transistor belonging to the Discrete Semiconductor Products family (Transistors - FETs, MOSFETs - Single). This component sets new standards in power switching efficiency, offering designers a perfect balance between performance and reliability. Engineered with precision, the AOT9N70 demonstrates outstanding characteristics including fast switching capability, low power dissipation, and excellent thermal stability. These features make it particularly suitable for high-frequency applications and power-sensitive designs. The MOSFET finds extensive use in electric vehicle components, industrial welding equipment, and advanced power supply units. It's equally effective in consumer electronics such as high-efficiency LED drivers, smart appliances, and portable electronic devices. For infrastructure applications, the AOT9N70 proves invaluable in telecom power systems, base station equipment, and railway electronics. Its rugged design ensures consistent performance even in challenging operating conditions. Design engineers will appreciate the component's versatility and the design flexibility it offers across multiple voltage and current ranges. To learn more about how the AOT9N70 can enhance your specific application, we invite you to submit an online inquiry. Our technical sales team stands ready to provide detailed product information and purchasing options tailored to your project needs.
General specs
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 700 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.2Ohm @ 4.5A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1630 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 236W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
