8420-21A1-RK-TP

3M

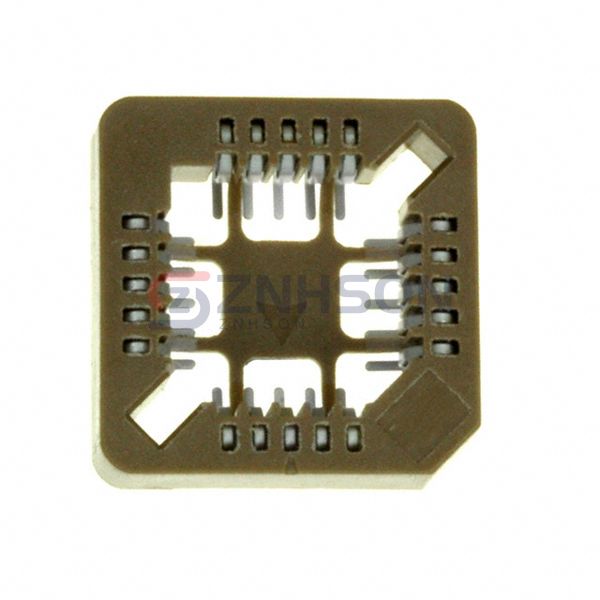

8420-21A1-RK-TP Preview
3M
CONN SOCKET PLCC 20POS TIN
$0.82
Available to order
Reference Price (USD)
3,120+
$0.68440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

DHL / Fedex / UPS 2-5 days
TNT 2-6 days
EMS 3-7 days

3M 8420-21A1-RK-TP is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.

Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
8420-21A1-RK-TP

8420-21A1-RK-TP

$0.82

Product details

The 8420-21A1-RK-TP by 3M delivers precision connectivity for ICs and transistors in compact, high-density applications. This innovative socket features micro-precision contacts that maintain excellent electrical characteristics even after thousands of mating cycles. Its low-profile design makes it perfect for space-constrained applications in mobile devices, wearable technology, and miniaturized industrial controls. The 8420-21A1-RK-TP offers superior resistance to mechanical stress and thermal cycling, ensuring reliable performance in challenging conditions. Engineers appreciate its compatibility with automated assembly processes, reducing production time and costs. This socket finds ideal applications in smart home devices, portable medical equipment, and drone technology where size and reliability are critical factors. 3M's quality control processes guarantee consistent performance across all production batches, giving you peace of mind for your high-volume requirements. The 8420-21A1-RK-TP represents the perfect marriage of miniaturization and robustness in interconnect solutions. Don't let space limitations compromise your design explore how this advanced socket can solve your connectivity challenges. Request a quote today to start your evaluation process.

General specs

  • Product Status: Active
  • Type: PLCC
  • Number of Positions or Pins (Grid): 20 (4 x 5)
  • Pitch - Mating: 0.050" (1.27mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 160.0µin (4.06µm)
  • Contact Material - Mating: Copper Alloy
  • Mounting Type: Surface Mount
  • Features: Closed Frame
  • Termination: Solder
  • Pitch - Post: 0.100" (2.54mm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 160.0µin (4.06µm)
  • Contact Material - Post: Copper Alloy
  • Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Operating Temperature: -40°C ~ 105°C
