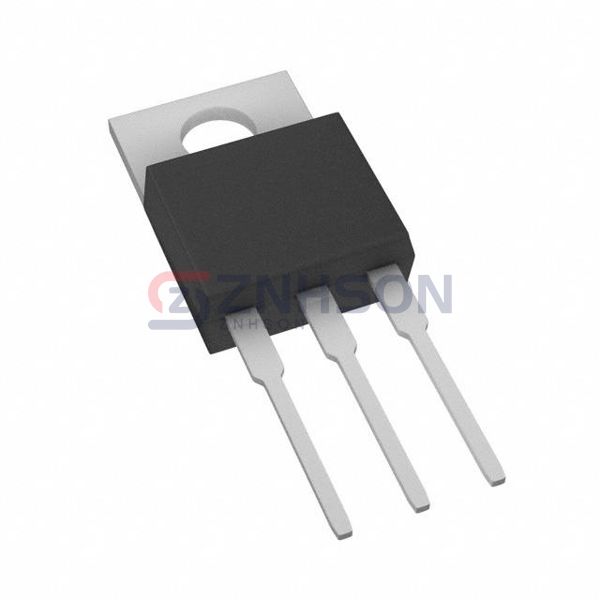

VS-40TTS12PBF
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 1.2KV 40A TO220AB
$0.00
Available to order
Reference Price (USD)
1,000+
$2.97500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Vishay General Semiconductor - Diodes Division VS-40TTS12PBF is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
VS-40TTS12PBF
$0.00
Product details
Designed for mission-critical power control, the VS-40TTS12PBF SCR by Vishay General Semiconductor - Diodes Division excels in the Thyristors - SCRs classification. This discrete semiconductor device offers robust performance in high-power switching applications, featuring advanced thermal management for continuous operation. Its design ensures precise current regulation with maximum reliability.
The VS-40TTS12PBF boasts impressive technical characteristics including high dv/dt capability, low holding current, and excellent forward blocking voltage. Special construction techniques minimize switching losses while maintaining high surge current tolerance. The device's gate structure provides consistent triggering across various operating conditions.
Key application areas include: 1) Power conversion systems for industrial drives, 2) Current control in electrochemical processing, and 3) Energy management in large-scale HVAC systems. The SCR also performs reliably in mining power distribution equipment, oil refinery control systems, and high-power laboratory instruments.
Access expert consultation on implementing the VS-40TTS12PBF in your systems by submitting an inquiry through our website. We offer comprehensive technical data and application notes to facilitate your design process.
General specs
- Product Status: Discontinued at Digi-Key
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 35 mA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 25 A
- Current - On State (It (RMS)) (Max): 40 A
- Current - Hold (Ih) (Max): 100 mA
- Current - Off State (Max): 500 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 300A @ 50Hz
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 140°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220-3
