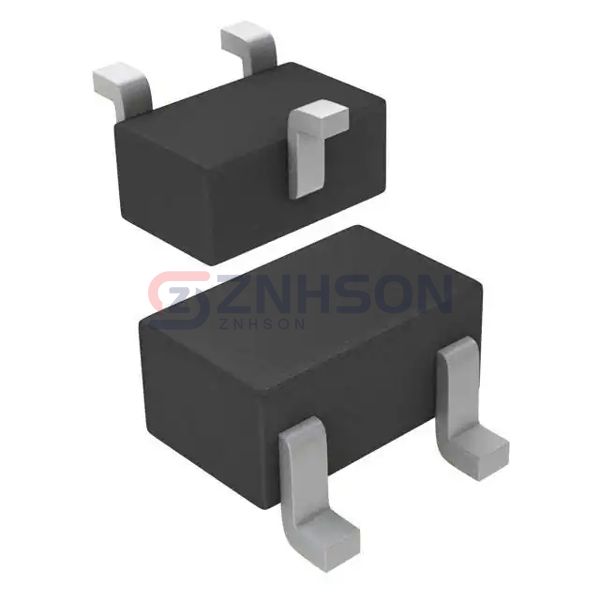

RN2303(TE85L,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
TRANS PREBIAS PNP 50V 0.1A USM
$0.27
Available to order
Reference Price (USD)
1+
$0.30000
10+
$0.27000
25+
$0.19480
100+
$0.15140
250+
$0.09516
500+
$0.08112
1,000+
$0.05516
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
| DHL / Fedex / UPS | 2-5 days |
| TNT | 2-6 days |
| EMS | 3-7 days |
Toshiba Semiconductor and Storage RN2303(TE85L,F) is available at inksontech.com. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please send a quote to us or contact us by email.
Experience hassle-free transactions with our flexible payment options and credit facilities. Learn more about the various payment methods accepted, installment plans, and any exclusive credit offers available to make your shopping experience seamless.
RN2303(TE85L,F)
$0.27
Product details
The RN2303(TE85L,F) represents Toshiba Semiconductor and Storage's commitment to precision in pre-biased transistor technology. This BJT solution simplifies circuit prototyping with its internally set operating point, eliminating trim potentiometers in amplifier stages. Key attributes include low quiescent current for battery-powered devices, high noise immunity for RF applications, and symmetrical switching times for digital logic interfaces. Real-world implementations range from automotive lighting controls to renewable energy monitoring systems and building automation networks. Its gull-wing leads facilitate visual inspection during quality control processes. Elevate your design's reliability access technical resources and procurement options by inquiring about the RN2303(TE85L,F) today.
General specs
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 22 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 200 MHz
- Power - Max: 100 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70
